Ck6150 CNC Lathe

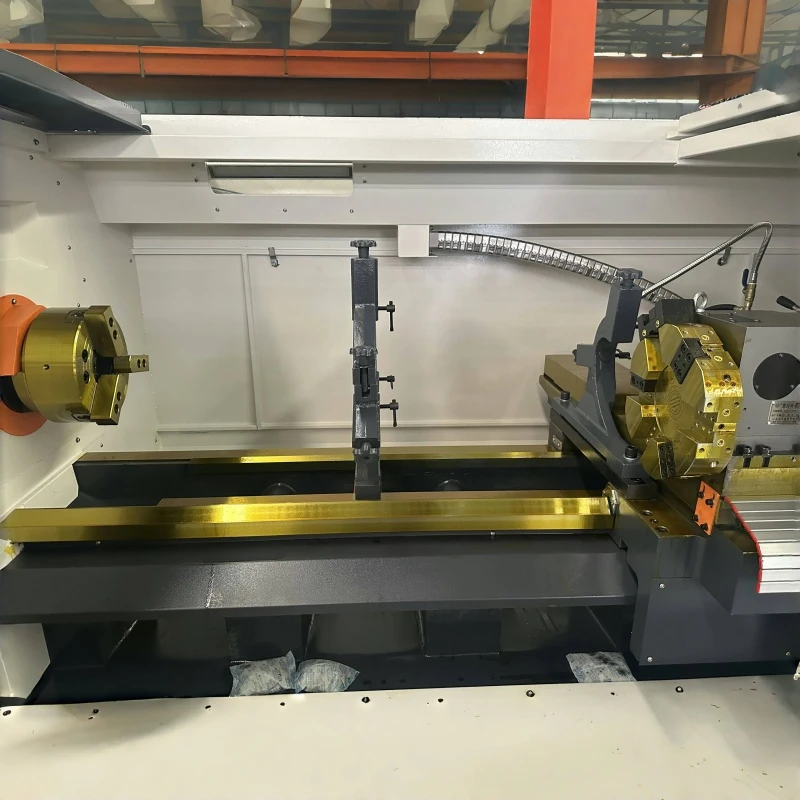

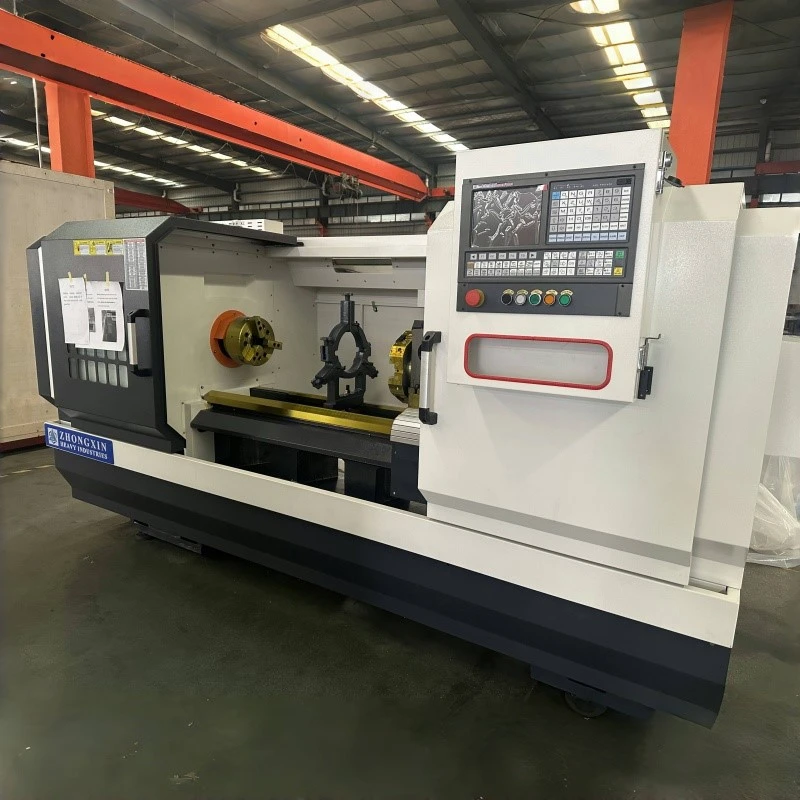

CK6150 CNC lathe Integral arch and bridge type body, one-piece molding structure is stable and rigid, standard equipped with manual tail stock and 250 manual chuck, also can be equipped with 10-inch hollow hydraulic chuck and hydraulic tail stock, equipped with 4-station electric tool holder adopting turbine worm gear transmission, fast rotation, high precision and long service life, also can be equipped with 6-station or 8-station electric tool holder, standard equipped with GSK980TC3 system, stable and reliable operation, 7.5 kW spindle motor running smoothly and with high precision, high load capacity, durable and durable. The 7.5 kW spindle motor runs smoothly and with high precision, the maximum spindle speed is 1800 rpm, high load capacity and durable, it is the first choice for machining.









Many mechanical equipment can suffer from various problems due to high temperatures, which can affect the operating conditions. Temperature is closely related to the operating condition of hard-track CNC lathe. Specifically as follows: on the one hand, abnormal damage to mechanical components, pipe blockage and other common forms of failure will form the temperature rise of the corresponding components. Therefore, overflow is a characteristic parameter that characterizes mechanical failure. On the other hand, the function of mechanical parts is closely related to temperature. Excessive temperature will lead to a decline in the function of the parts, and even form part burnout. Therefore, temperature is also an important factor causing the failure of CNC slant bed lathe.



The ambient temperature of the hard rail CNC lathe should be lower than 30 degrees, and the relative temperature should be lower than 80%. Generally speaking, there is an exhaust fan or cooling fan inside the CNC electronic control box to ensure that the working temperature of the electronic components, especially the central processor, is stable or the temperature difference is very small. Excessive temperatures and humidity can reduce the life of control system components and increase the number of problems. As temperature and humidity increase, more dust can stick to integrated circuit boards and cause short circuits. Power requirements are universal, and CNC slant lathe installations in machine shops not only have wide variations in ambient temperatures and poor usage conditions, but also have a wide variety of electromechanical equipment, resulting in high vibration on the power grid. Therefore, the CNC lathe device has strict control over the power supply voltage. The fluctuation of the power supply voltage must be within the permissible range and relatively stable, otherwise it will affect the normal operation of the CNC system.



As a highly active and intelligent machine tool, hard-track CNC lathe should be kept away from the operating environment with high vibration and the mechanical equipment that affects its vibration. If necessary, anti-vibration measures should be taken at the operation site to create a good operation site for the application of CNC slant lathe. Keep away from equipment with high vibration (such as punch presses, forging equipment, etc.). High-precision lathes should also be selected to use anti-vibration measures (such as anti-vibration grooves, etc.). Otherwise, it will directly affect the machining accuracy and stability of the lathe, make poor contact and failure of electronic components, and affect the reliability of the CNC slant bed.



Strict and perfect operating procedures are one of the important measures to ensure the safe operation of hard-track CNC lathes. The operator should operate in strict accordance with the operating procedures. When the machine tool malfunctions, the operator should stay on the scene and truthfully explain the situation before and after the malfunction to the maintenance personnel in order to analyze and diagnose the cause of the malfunction, troubleshoot in time and reduce the downtime.





Capacity

Max.workpiece swing diameter	500mm
Max. turning diameter	500mm
Max. turning length	850-1350-1850mm
Chuck size	250mm



Axis travel

X axis travel	280mm
Z axis travel	1000-1500-2000mm
Rapid feed (X)	6000mm/min
Rapid feed (Z)	8000mm/min



spindle

Spindle speed	1800r/min	800r/min
Spindle speed range	Stepless
Spindle nose	A2-8	opention A2-11
Bar capcity	82mm	opention130mm
Hole through draw tube	65mm	opention



Turret

Type of turret	Electric tool holder
Number of tool stations	4 station
Tool size(square shank)	25mm



Machine tool precision

Accuracy of position	X-axis	0.01mm
	Z-axis	0.015mm/0.02mm/0.025mm
Repeatability	X-axis	0.009mm
	Z-axis	0.01mm/0.012mm/0.015mm/



Bed structure and transmission

Guideway type	Hard track
X axis Rail width	210mm
Z axis Rail width	400mm
X axis ball screw	2506
Z axis ball screw	4008-5010-5010



Tail stock

Tail stock	Manual tailstock
Sleeve diameter	75mm
Sleeve travel	150mm
Sleeve taper	MT5#
Tail seat movement form	manual



NC unit

NC unit	GSK980TC3
X axis motor torque	5NM/7.5NM
Z axis motor torque	7.5NM/10NM/15NM
spindle motor power	7.5kW



Other

Lubrication pump	2ZK(2L)
Cooling pump	150W/250W
Machine voltage	380V/50HZ
Power supply	11KVA/12KVA/15KVA
Machine overall dimensions	2650/3250/3750*1700*1820mm
Machine weight	2700/3100/3500kg



NC unit	GSK
Ball screw	QS/QJ
Screw rod bearing	xinha
Manual chuck	HQ
Electric knife holder	wengcang
Spindle	PLT
Lubrication pump	HEJIN
cooling pump	OURUIS
Low Voltage Apparatus	CHINT





 CNC system

 FANUC

 SIEMENS 808D

 SYNTEC

 HNC

 KND

 6/8 Electric knife holder

 Hydraulic chuck

 Automatic door

 Safety device for auto door

 Oil-Water Separator

 Blowing device

 Water gun
