Zhongxin is a dedicated manufacturer and exporter of heavy-duty, high-precision CNC Lathe Machines and CNC Turning Center solutions for global OEM and contract manufacturers.
Designed to eliminate multi-setup bottlenecks, Zhongxin CNC Turning Centers deliver high-torque cutting stability, sub-micron accuracy, and extended tool life. From initial engineering drawing evaluation and component-level configuration down to full machine integration, sea-worthy export packing, and lifetime technical support, we deliver complete turn-key manufacturing solutions tailored to international industrial buyers.
ZhongXin Manufacturing Capability
We control critical assembly stages to guarantee long-term alignment and repeatability:
Machine Structure Assembly:
Precision scraping of critical mounting surfaces and alignment verification of linear guideways.
01
Precision Component Installation:
Integration of THK/HIWIN linear motion guides, C3-grade precision ball screws, and NSK spindle bearings.
02
CNC System & Electrical Integration:
Full wiring according to CE safety standards with climate-controlled electrical cabinets.
03
Final Machine Testing:
Every machine undergoes a 48-hour continuous dry-run test, dynamic ballbar tests, and full laser calibration prior to shipment dispatch.
04
Technical Specifications
|
Item |
Details |
|
Machine Type |
CNC Turning Center |
|
Application |
Precision turning and multi-process machining |
|
Control System |
FANUC / Siemens / Mitsubishi Optional |
|
Axis Configuration |
2 Axis / 3 Axis / Multi-axis Optional |
|
Max Turning Diameter |
According to machine model |
|
Max Turning Length |
According to machine specification |
|
Spindle Type |
Belt Drive / Direct Drive Optional |
|
Spindle Speed |
Configurable according to machining requirements |
|
Spindle Motor Power |
Different power options available |
|
Turret Type |
Hydraulic / Servo Turret Optional |
|
Tool Capacity |
Multiple tool positions available |
|
Guideway Type |
Linear Guideway or Hardened Guideway |
|
Positioning Accuracy |
According to machine standard |
|
Repeatability Accuracy |
According to machine standard |
|
Automation Options |
Bar Feeder, Robot Loading, Chip Conveyor |
Product Features
Application-Driven Engineering:
We configure machine specs—spindle power, turret capacity, axis limits—directly against your CAD drawings, material grades, and volume targets to avoid unnecessary costs.
High-Rigidity Machine Structure:
Cast iron beds undergo natural aging treatments to eliminate internal stress, minimizing cutting vibration and ensuring continuous surface-finish quality.
People living in container houses should...
Premium Spindle Systems: Built for thermal stability and high torque, enabling stable cutting across carbon steel, stainless steel, aluminum alloys, brass, and heat-resistant industrial alloys.
Flexible Automation Integration:
Full compatibility with industrial automation, including servo/hydraulic turrets, automatic bar feeders, chip conveyors, and robot loading/unloading arms.
Applications
Automotive Industry:
Drive shafts, transmission gears, wheel hubs, brake pistons, engine fittings.
Oil & Gas Industry:
High-pressure valve stems, threaded couplings, pump shafts, drill bit components.
Hydraulic & Pneumatic Industry:
Spool valve bodies, cylinder rods, hose fittings, manifolds, fluid connectors.
General Industrial Machinery:
Bearing sleeves, custom flanges, structural pins, industrial bushings.
CNC Turning Center Configurations
Standard 2-Axis CNC Turning Center:
Engineered for high-speed, general turning of high-volume shafts, bushings, pins, and flanges.

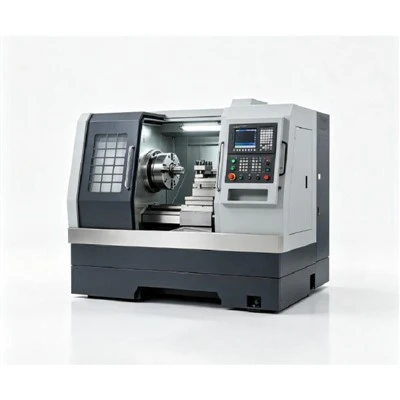

CNC Turning Center with Live Tooling (C-Axis):
Equipped with driven tool positions for axial/radial milling, off-center drilling, and rigid tapping.

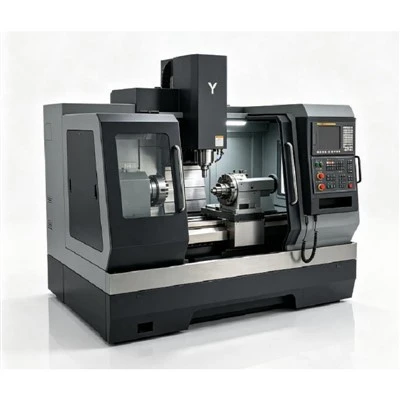

Y-Axis CNC Turning Center:
Features a real Y-axis (±50 mm travel) for complex off-center milling, complex slots, and multi-faceted contours without indexing re-positioning.
Twin Spindle CNC Turning Center:
Integrates a main spindle and sub-spindle for seamless back-working (Done-in-One processing), eliminating second-op setups completely.
CNC Turning Center Machining Capability
Precision Turning & Facing:
Rough and finish machining of cylindrical, conical, and contoured surfaces.
Internal Boring & Counterboring:
High-rigidity boring bar holders ensuring H7 hole tolerance and smooth internal finishes.
Precision Threading:
Single-point and multi-pass threading for Metric, ACME, NPT, and custom thread profiles.
Live Tool Milling & Drilling:
Cross-hole drilling, face milling, keyway slotting, and polygon profiling directly on turned parts.
Machining Challenges & Solutions
Accumulating Tolerance Errors Across Multiple Machines
Solution: ZhongXin Turning Centers complete turning, milling, and drilling in one single clamping, ensuring absolute concentricity and tight geometric tolerances.
Thermal Deformation During Long Production Runs
Solution: Symmetrical bed casting, isolated spindle designs, and thermo-compensation systems preserve micron-level consistency over multi-shift operations.
High Labor Costs & Skilled Operator Shortages
Solution: Automated bar feeder interfaces, automatic tool setters, and robot-assisted loading reduce direct labor involvement while increasing unattended overnight output.
CNC Turning Center vs. Standard CNC Lathe
|
Feature / Capability |
ZhongXin CNC Turning Center |
Conventional CNC Lathe |
|
Process Integration |
Turning + Milling + Drilling + Threading |
Primary turning operations only |
|
Clamping Setups |
Single setup for multi-process parts |
Multiple setups & machine transfers required |
|
Live Tooling Support |
Yes (C-Axis / Y-Axis driven tools) |
No (Static tooling only) |
|
Automation Readiness |
Fully integrable with bar feeders & robotics |
Basic bar feeder support |
|
Production Cycle Time |
Significantly shorter per complex part |
Longer due to manual handling |
Customized Engineering & OEM Solutions
ZhongXin delivers tailored machine tools based on customer-specific production criteria:
Part Drawing Analysis:
Review of CAD files (.STEP / .DWG) to confirm machining feasibility and axis requirements.
Configuration Tailoring:
Selection of spindle torque profiles, chuck sizes, guide types, and controller setups.
Turnkey Automation:
Full design and integration of robot cells, custom work-holding, and chip management units.
Designed for safe overseas transit across deep-sea and long-distance land routes:
Corrosion Protection: Full anti-rust oil treatment and vacuum-sealed VCI moisture barrier.
Structural Crate Packaging: Heavy-duty, IPPC-certified ISPM-15 fumigated wooden cases with internal steel tie-downs.
Logistics Documentation: Complete export documentation package, including Commercial Invoice, Packing List, Certificate of Origin (CO), and CE Declarations.
Installation, Warranty & Global After-Sales Support
Installation & Training:
Remote online commissioning guidance or on-site engineer dispatch for setup and controller operation training
Technical Support:
24-hour response time via remote IoT diagnostics, video support, and dedicated engineering channels.
Spare Parts & Warranty:
12–24 month comprehensive warranty on core components, with global express dispatch (DHL/FedEx) for replacement parts.
Our Certificate
ISO9001, ISO14001, ISO45001, CE, EAC, CMS, GSP, BV, SGS, ERP, TUV
FAQ
Get Your Custom CNC Turning Center Recommendation
Optimize your production efficiency, reduce setup times, and elevate your machining accuracy with a ZhongXin CNC Turning Center.
To receive a detailed technical proposal and official quotation, please provide:
Component CAD/PDF drawings with key tolerances
Material type and hardness specs
Target monthly production volume
Contact Our Engineering Sales Team Today to schedule a technical evaluation and secure a high-precision solution for your facility.
