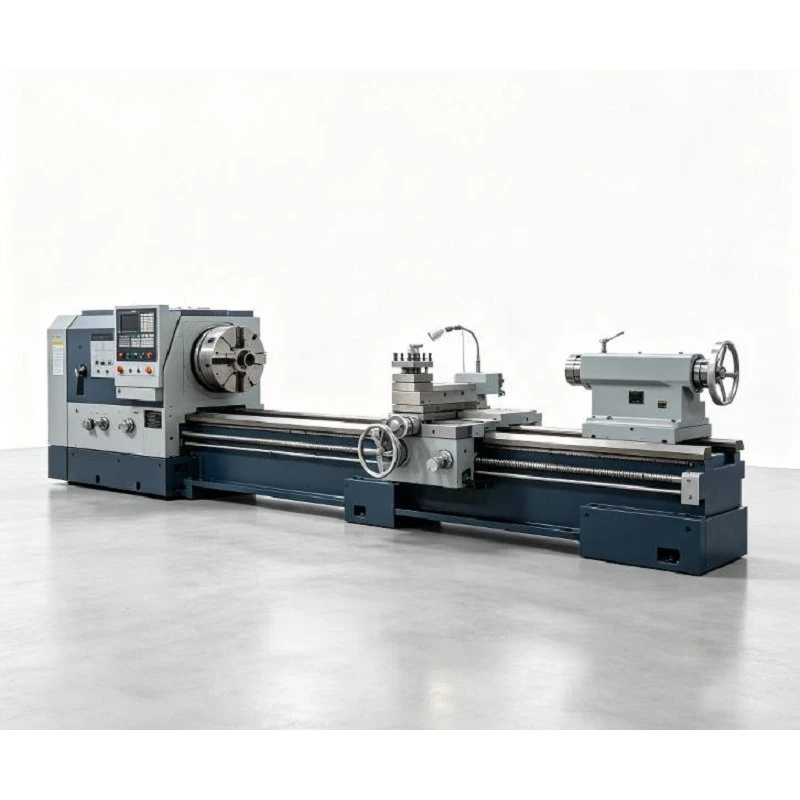

CNC Lathe For Long Shaft Machining

The CNC Lathe for Long Shaft Machining is built for industrial manufacturers requiring high rigidity and accurate turning of heavy, extended, and oversized shaft components.

Send Inquiry

Product Introduction

The CNC Lathe for Long Shaft Machining is built for industrial manufacturers requiring high rigidity and accurate turning of heavy, extended, and oversized shaft components.

Designed to overcome common long-shaft machining challenges-such as workpiece deflection, vibration, and low efficiency from repeated repositioning-this machine integrates an extended cast iron bed, high-torque spindle drive, and multi-point steady support systems. It ensures stable cutting conditions and precise concentricity across the entire workpiece length, making it an essential asset for heavy machinery, energy, transportation, and marine manufacturing.

Technical Specifications

Specification	Typical Range
Maximum Turning Diameter	600 mm - 1800 mm
Swing Over Bed	800 mm - 2000 mm
Distance Between Centers	3000 mm - 15000 mm (customized)
Maximum Turning Length	3000 mm - 15000 mm (customized)
Spindle Bore Diameter	100 mm - 400 mm
Main Motor Power	22 kW - 75 kW
Spindle Speed Range	20-800 rpm
Maximum Workpiece Weight	Customized according to configuration
Guideway Type	Hardened and precision-ground guideways
CNC Control System	FANUC / Siemens / Mitsubishi / Other options
Chuck System	Hydraulic chuck or customized clamping system
Workpiece Support	Tailstock and steady rest options

Key Benefits

Extended Single-Setup Machining: Extended bed options allow multi-meter shaft components to be turned in a single setup, eliminating cumulative clamping errors and setup time.
Superior Anti-Vibration Structure: High-rigidity Meehanite cast iron bed with wide induction-hardened guideways effectively dampens cutting vibration during heavy roughing.
Large Through-Bore Spindle: Large spindle bore options enable long stock to pass directly through the headstock, optimizing clamping stability and versatility.
Flexible Hydraulic Support: Configurable hydraulic steady rests and tailstocks support slender shafts to maintain strict straightness and diameter tolerances.
Continuous Heavy-Duty Operation: Engineered for multi-shift industrial production, delivering long-term thermal stability and consistent machining accuracy.

Industry Applications

Heavy Equipment Manufacturing: Large drive components, axles, and structural pins.
Energy & Power Generation: Wind turbine main shafts, gas turbine rotors, and generator shafts.
Shipbuilding & Marine Engineering: Marine shafting systems, rudder stocks, and stern tubes.
Oil & Gas Drilling: Drill collars, drill pipes, and downhole tool bodies.
Metallurgical Equipment: Continuous casting rolls and heavy conveyor drums.

Machine Structure Design

Heavy-Duty One-Piece Bed: Cast from high-tensile Meehanite iron with dense cross-ribbing to resist torsional deformation under extreme cutting loads.
Extended Precision Bedways: Precision-ground flat and prism guideways ensure straight line motion over distances up to 15 meters.
High-Torque Headstock: Features hardened gear trains and precision Timken taper roller bearings to support high radial and axial forces during turning.

Materials and Cutting Capability

Extensive compatibility with raw material forms (forged, hot-rolled, turned):
Carbon Steels (1045, 4140)
Alloy & Stainless Steels (316L, Duplex, 4340)
Heat-Treated & Tool Steels
Cast Iron & Forged Alloys

Optional Configurations

Hydraulic / Servo Auto-Tracking Steady Rests: Maintains support along slender shafts during turning operations.
Dual Chuck Systems: Front and rear chucks mounted on the spindle for processing long tube/pipe ends.
In-Process Measuring Probes: Renishaw/Marposs inspection probes for automated part alignment and feature measurement.
Automatic Tool Turrets: 8- or 12-station hydraulic/servo turrets or heavy-duty gang tooling.
Chip Conveyors & High-Pressure Coolant: Chain-type chip conveyors with high-pressure coolant pumps for heat and chip evacuation.
Full Enclosures / Safety Interlocks: CE-compliant protective guards and interlocked door systems.

Quality Inspection

Rigorous Factory Acceptance Test:

Laser interferometer positioning accuracy check
Spindle dynamic balance & thermal runout testing
Static alignment & geometric inspection
Workpiece trial cutting prior to dispatch

FAQ

Q: What is the main structural difference between a standard CNC lathe and a long shaft CNC lathe?

A: A long shaft CNC lathe features an extended, heavily reinforced cast iron bed, widened box guideways, elevated load-bearing capacity (up to 20 Tons), and integrated hydraulic steady rest options designed specifically to control shaft deflection and vibration over multi-meter lengths.

Q: How do you ensure turning straightness and concentricity on a 10-meter shaft?

A: Straightness and concentricity are maintained through precision-ground bedways, laser-aligned headstock-tailstock centerlines, and CNC-controlled hydraulic steady rests that support the workpiece along key vibration nodes.

Q: Can this machine handle both heavy roughing and precision finishing?

A: Yes. The high-torque geared motor and rigid cast iron structure accommodate high-depth rough cuts, while high-resolution encoder feedback enables fine finishing passes in the same setup.

Q: How is a long-bed machine shipped and aligned at our factory?

A: Machines are designed in modular bed sections for flat-rack or container shipping. Detailed foundation layout drawings, assembly manuals, and remote alignment guidance (or engineer dispatch) are provided for installation.

Q: What technical details are needed to receive a custom quote?

A: To receive an accurate engineering proposal, please provide max/min shaft diameter, max length, maximum workpiece weight, material grade, required tolerances, and preferred CNC controller.
