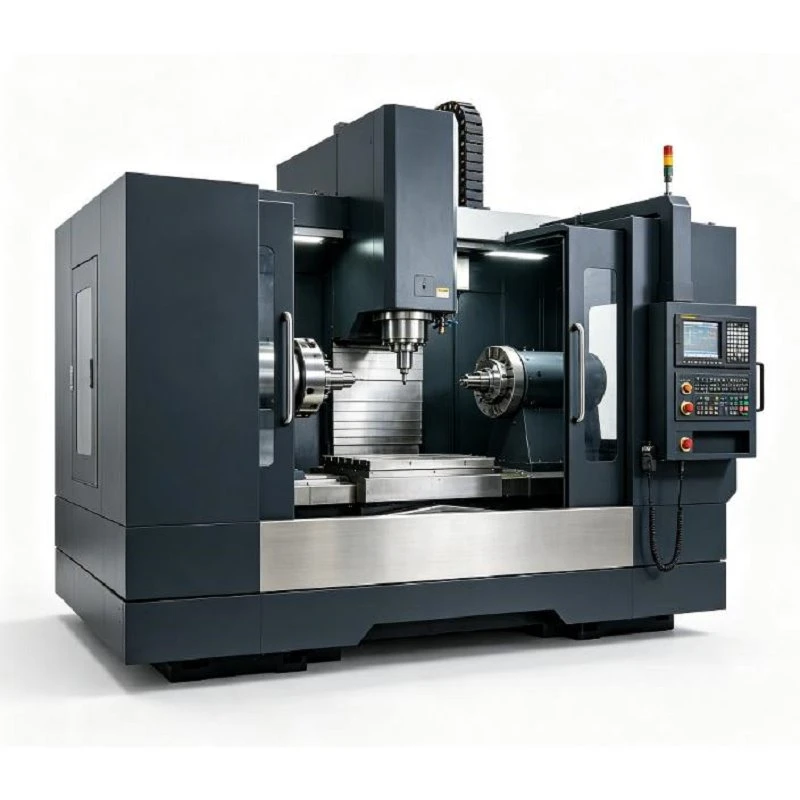

Mill Turn Machining Center

A Mill Turn Machining Center integrates CNC turning, milling, drilling, tapping, and off-center contouring into a single continuous workflow. Engineered for complex rotational and multi-featured components, it eliminates repeated workpiece setups, minimizes cumulative tolerance stack-up, and dramatically shortens floor-to-floor cycle times.

Send Inquiry

Product Introduction

Technical Specifications

Technical Item	Configuration
Machine Type	CNC Mill Turn Machining Center
Main Functions	Turning, Milling, Drilling, Tapping
Axis Configuration	4-Axis / 5-Axis / Multi-Axis
CNC Control	FANUC / Siemens / Mitsubishi
Main Spindle	Available
Sub-Spindle	Optional
C-Axis	Available according to model
Y-Axis	Optional according to model
B-Axis	Optional according to model
Live Tooling	Available
Maximum Turning Diameter	According to machine model
Maximum Turning Length	According to machine model
Bar Capacity	According to machine model
Spindle Power	According to machine model
Spindle Speed	According to machine model
Tool Capacity	According to configuration
Automatic Tool Change	Available
Bar Feeder	Optional
Robot Loading	Optional
Automatic Measurement	Optional
Chip Conveyor	Optional

Key Production Advantages

Done in One Setup: Eliminates workpiece transfer and secondary fixture alignment.

Superior Concentricity: Achieves strict position and runout tolerances across all turned and milled features.

Flexible Configurations: Scalable C-axis, Y-axis, B-axis, sub-spindle, and live tooling layouts.

Automated Production: Full compatibility with automatic bar feeders, gantry systems, and robot loading.

Versatile Manufacturing: Rapid adaptation for high-mix/low-volume prototyping and continuous batch runs.

Primary Industries Served

Aerospace & Defense: High-precision fittings, turbine components, and complex connectors.
Automotive & EV: Transmission shafts, control valve bodies, and differential parts.
Medical Devices: Orthopedic implants, surgical instruments, and specialized fluid connectors.
Fluid Power & Hydraulics: Multi-port valve bodies, manifolds, and high-pressure pumps.
Precision Industrial Machinery: Custom flanges, rotating shafts, and keyway-driven components.

Core Machining Functions

CNC Turning
Outside diameter (OD) turning, internal boring, facing, grooving, single/multi-start threading, and parting.

Live-Tool Milling
Driven tools on the turret/head enable face milling, side milling, keyway cutting, pocketing, and 3D contouring directly on the workpiece.

Axial & Cross Hole Operations
Synchronized drilling, reaming, deep-hole drilling, and rigid tapping on both end faces and outer radial surfaces.

Axis Configurations (C / Y / B Axis)

C-Axis (Spindle Indexing & Interpolation): Enables continuous spindle positioning (0.001 degree resolution) for polar coordinate milling, radial bolt-hole patterns, keyways, and surface contouring around the axis.

Y-Axis (Off-Center Travel): Moves perpendicular to the spindle centerline to machine off-center flat surfaces, cross-drilling, slots, and complex profiles without spindle rotation.

B-Axis (Swiveling Milling Head): Provides continuous angular positioning (typically +/- 100 degrees to +/- 120 degrees) for compound-angle drilling, inclined surfaces, 5-axis simultaneous contouring, and back-side machining.

Automation, Tooling & Options

Live Tool Turret / Tool Magazine: Servo-driven turrets or automatic tool changers (ATC) with up to 24 to 60 tool positions.
Sub-Spindle Integration: Allows automatic part hand-off for rear-end machining, finishing the complete component in one cycle.
Bar Feeders & Parts Catchers: Enables continuous, unattended production for shaft and tubular stock.
Robotic Loading Systems: Integrated 6-axis articulated robots or gantry loaders for heavy or forged workpieces.
In-Process Probing: Automated work coordinate setting and optical/laser tool setters for closed-loop quality control.
High-Pressure Coolant & Chip Conveyors: 20 to 70 bar through-spindle coolant (TSC) for rapid chip evacuation and extended tool life.

Quality Assurance & Global Service Support

Quality & Safety Standards: CE Certified, ISO 9001:2015 Manufacturing Quality Standards compliance.
Global Warranty: 12-month comprehensive warranty covering spindle, axis drives, and CNC controller.
Technical Support: 24/7 remote diagnostics, field service engineering, lifetime spare parts supply, and overseas on-site installation/training support.

FAQ

Q: What is the primary difference between a CNC lathe with live tooling and a Mill Turn Machining Center?

A: A standard turning center with live tools typically offers limited radial milling via C-axis indexing. A true Mill Turn Center incorporates Y-axis (off-center) and optional B-axis swiveling capabilities, allowing full 4-axis or 5-axis milling comparable to a dedicated machining center.

Q: When should I opt for a Sub-Spindle configuration?

A: A sub-spindle is ideal when components require turning, milling, or drilling on both ends. The sub-spindle automatically hands off the part from the main spindle for back-working, delivering a 100% completed part without manual intervention.

Q: Can a Mill Turn center handle tough alloys like Titanium or Stainless Steel?

A: Yes. By specifying a high-torque, direct-drive spindle and a heavy-duty rigid cast base, the machine easily processes tough materials while maintaining long tool life and tight tolerances.

Q: How do I select the right machine model for my production line?

A: Machine configuration depends on your part geometry, dimensions, material, required tolerances, and production volume. Providing a detailed part drawing allows our application engineers to recommend the exact spindle, tool capacity, and axis layout required.
