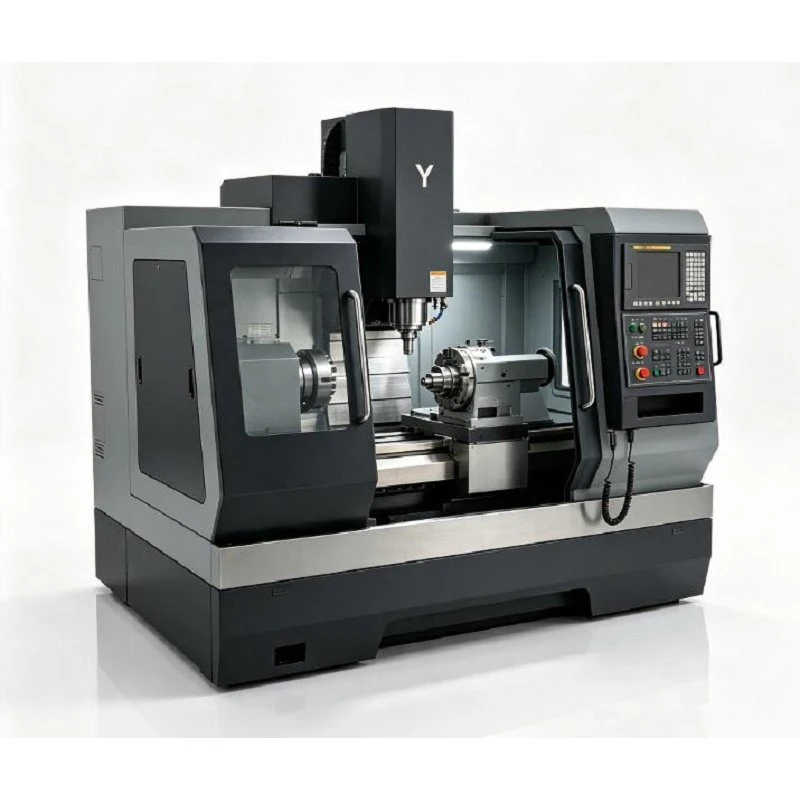

Y Axis Turning Center

The Y-Axis CNC Turning Center combines heavy-duty turning, multi-axis milling, off-center drilling, and rigid tapping into a single high-efficiency CNC platform. Driven by precision C-axis control, live tooling turrets, and full Y-axis travel, this machine enables complete single-setup machining for complex engineering components-eliminating multi-machine transfers and minimizing positioning errors.

Single-Setup Complete Machining: Complete turning, cross-drilling, keyway milling, and tapping in one clamping cycle, cutting overall cycle times by up to 35%–40%.

Superior Part Consistency: Single-clamping operation eliminates repositioning errors, ensuring tight geometric tolerances across all off-center and radial features.

Reduced Capital Expenditure & Footprint: Replaces the need for separate standard CNC lathes and vertical machining centers, saving valuable factory floor space.

Flexible Batch Production: Optimized for high-mix/low-volume prototyping as well as automated, continuous high-volume production.

Automotive: Transmission shafts, engine sleeves, steering knuckles, and differential components.
Hydraulics and Pneumatics: Spool valves, manifold blocks, pump housings, and high-pressure hose fittings.
Aerospace and Defense: Structural brackets, fuel system connectors, landing gear pins, and lightweight alloy fittings.
General Machinery: Power transmission shafts, flanged adapters, mechanical seal rings, and custom hardware.

Heavy-Duty Cast Machine Bed: Damps cutting vibrations during heavy metal removal, extending tool life and ensuring thermal-mechanical stability.
Precision Linear/Slideway System: Low-friction, high-rigidity guideways allow smooth axis travel, high-speed feed rates, and repeatable accuracy under continuous load.
Thermal Stability and Optimized Spindle: Thermally balanced headstock design minimizes spindle growth, delivering stable torque and speed outputs.


Automatic Bar Feeder System: Supports long-period unattended shaft continuous processing to minimize labor requirements.
Integrated Robot Loading/Unloading: Articulated arms or gantry loaders automate raw material feeding and finished part collection.
In-Process Tool Measurement: Automatic tool setters verify tool geometry, detect wear, and perform tool breakage detection.
High-Efficiency Chip Conveyor: Hinged belt or scraper conveyor systems quickly remove chips to maintain thermal stability.

Tailor your turning center around specific material, geometry, and throughput requirements:
Dual-spindle (Main + Sub-spindle) for complete back-working capabilities
High-pressure coolant delivery systems for deep-hole drilling and tough alloys (e.g., Titanium, Inconel)
BMT or VDI live tool turrets with enhanced torque capabilities
Custom part catchers, gantry loaders, and automated chuck jaw changeouts

We provide end-to-end quality validation and logistical support for our international buyers:
Pre-Shipment Inspection: Factory acceptance testing includes laser interferometer alignment, dynamic balancing, ball-bar circularity tests, and test workpiece cutting.
Complete Technical Documentation: English-language user manuals, electrical schematics, maintenance protocols, and programming guides.
Global Logistics and Support: Industrial export packaging, installation setup guidance, online remote diagnostics, and fast-response spare parts shipment.
