Best Small Cnc Lathes
USE

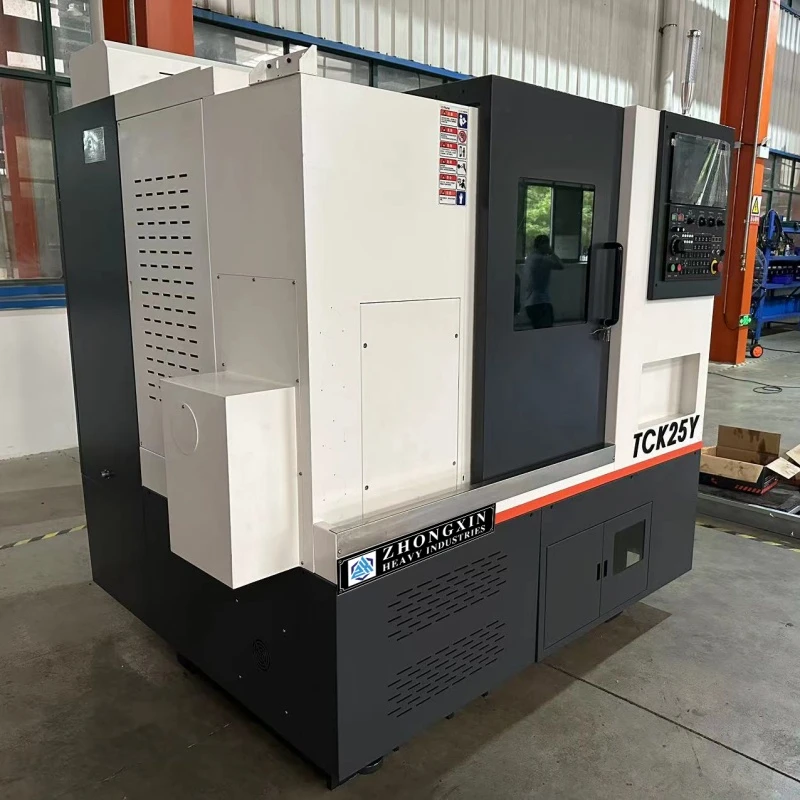

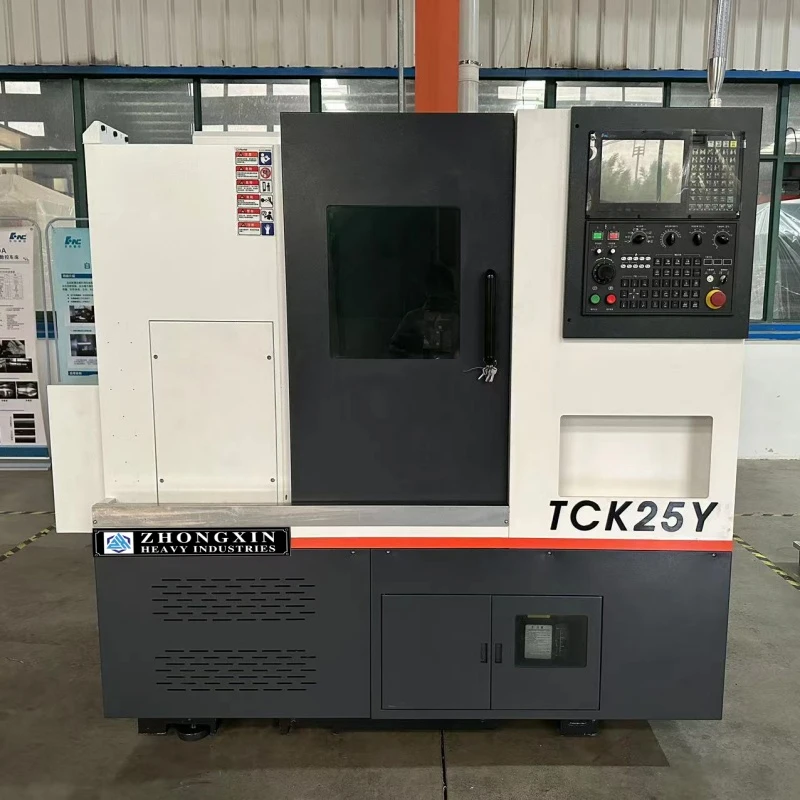

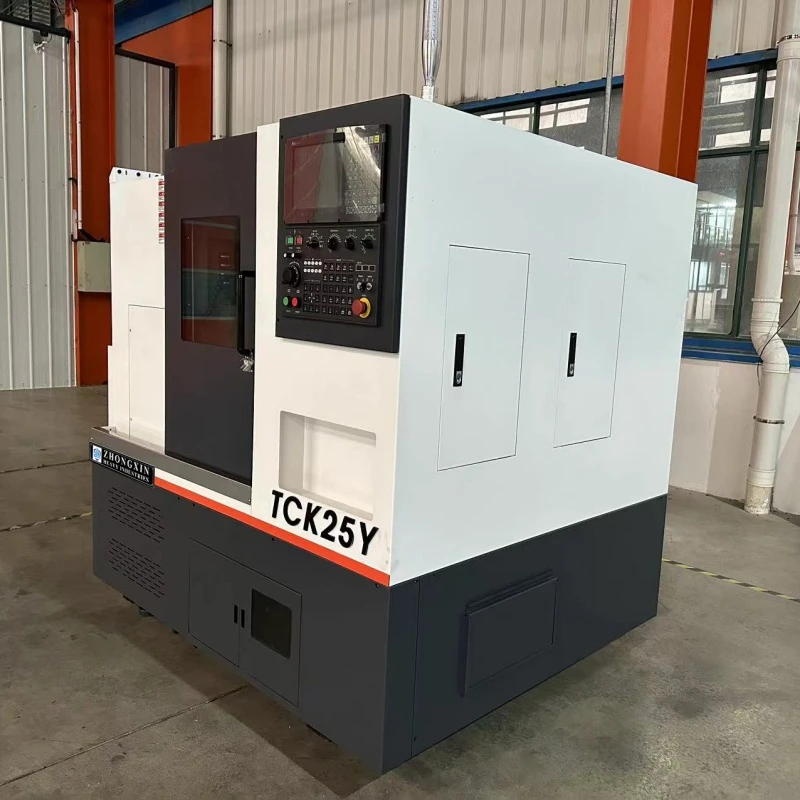

Best Small Cnc Lathes TCK25Y redefines compact machining with its robust design and advanced automation capabilities. Engineered for workshops, labs, and small-scale production environments, this small yet powerful lathe delivers precision, versatility, and reliability. Whether you're crafting intricate prototypes or producing high-tolerance components, the TCK25Y ensures efficiency without compromising on performance.
Features
Standard: GSK,
Optional: Siemens , Fanuc,
Syntec Mitsubishi and others

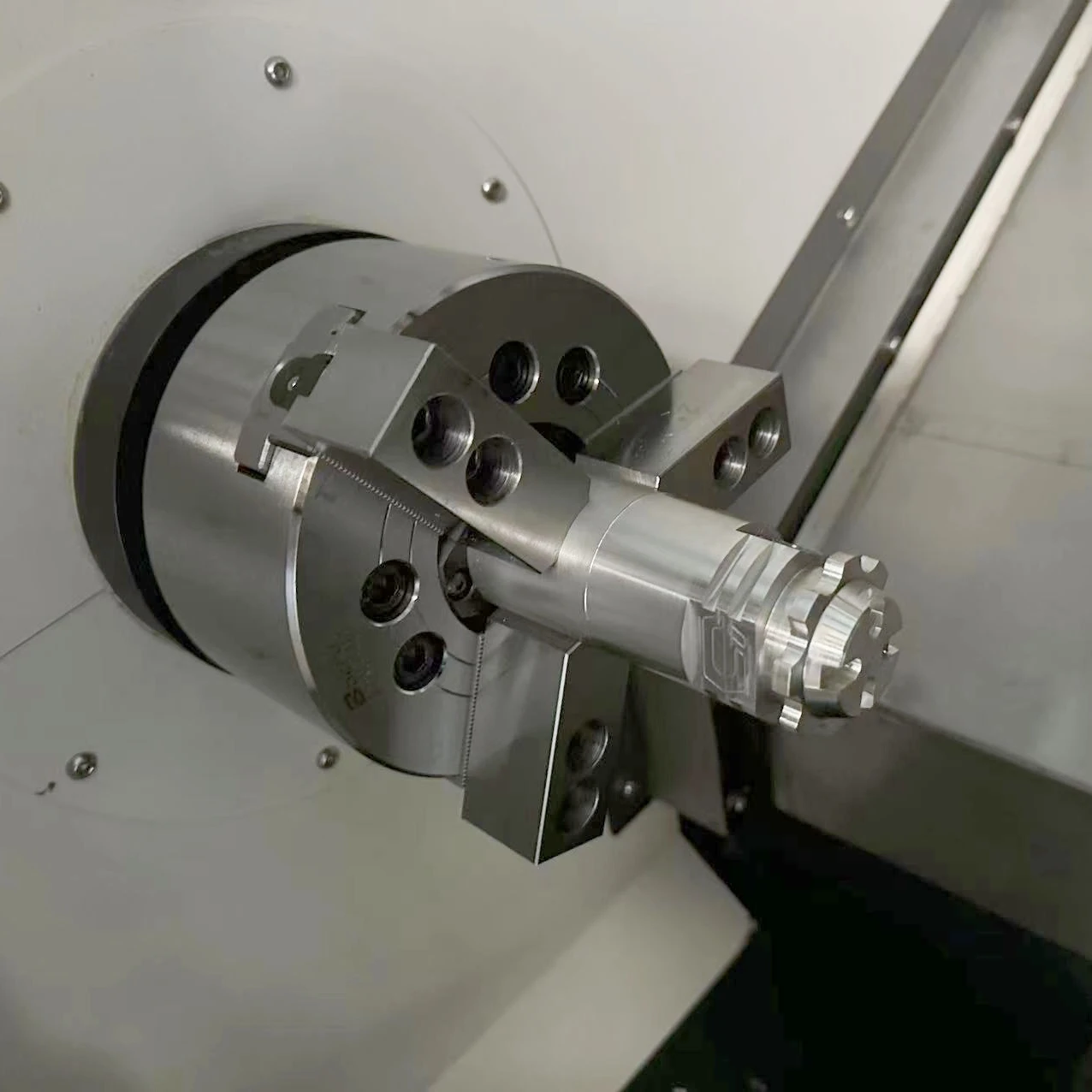

HYDRAULIC CHUCK
Standard with hollow hydraulic chuck, Chinese brand or Taiwan brand
LINEAR RAIL AND BALL SCREW
Taiwan Linear railway and Chinese famous brand ballscrew with high precision and high speed.
TAIWAN TCSM SERVO TURRET
Standard: 8 station servo turret; Optional: Hydraulic turret or power turret
HYDRAULIC TAILSTOCKC
AUTO LUBRICATION SYSTEM
Automatic centralized lubrication device

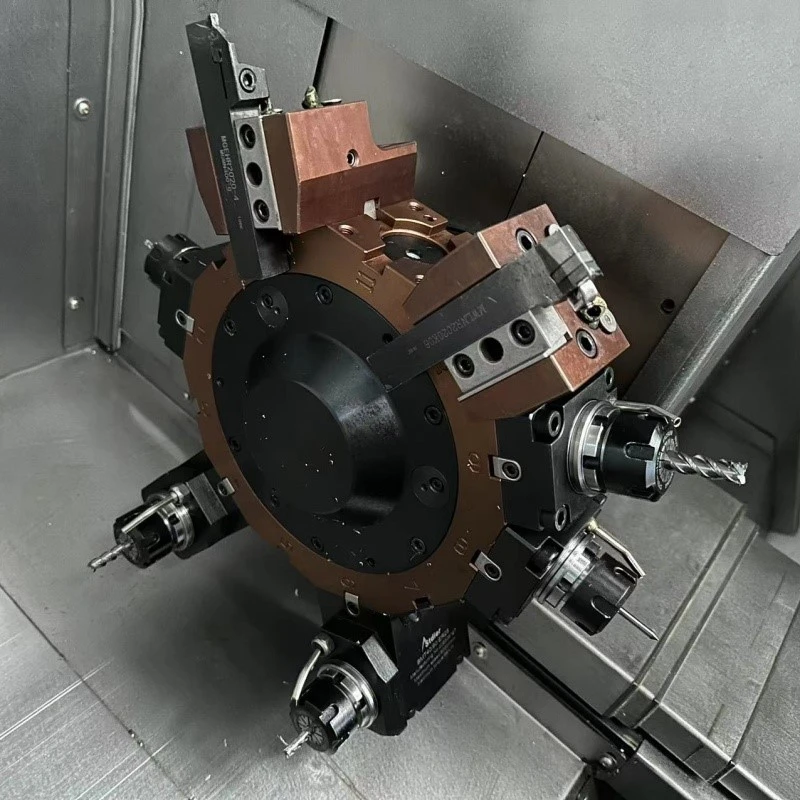

TAIWAN POWER TURRET
1. Forward and reverse two-way tool change, high efficiency, servo drive
2. Adopting high-precision triple end tooth locking, with high locking force and precision
3. Locking by hydraulic with high reliability
4. Turning, milling, and drilling through a power tool holder
5. Axial, radial, and special fixed angle machining can be achieved through the power tool holder
Specifications
|
SPECIFICATIONS FOR TCK25Y CNC TURNING AND MILLING COMPOSITE MACHINE |
||
|
Max. swing over bed Max. swing over cross slide |
mm mm |
510 250 |
|
Maximum turning length Maximum turning diameter Spindle nose |
mm mm mm |
235 Φ250(disc)Φ150(axis) A2-5 |
|
Spindle bore Max. Bar capacity Spindle speed Maximum output torque of spindle Spindle motor power |
mm mm r/min N.m kw |
Φ56 Φ44 50～4500 107 5.5/7.5 |
|
Chuck size X-axis rapid traverse Z-axis rapid traverse Y-axis rapid traverse |
inch m/min m/min m/min |
6 24 30 24 |
|
X-axis travel Y-axis travel Z-axis travel |
mm mm mm |
135 60 (±30) 370 |
|
Turret type Tool shank size |
mm mm |
Horizontal 12 stations 20x20/Ф25/Ф20 |
|
Maximum load (disc) Maximum load (axis) |
Kg kg |
100 250 |
|
Machine dimension Weight |
mm kg |
1430*1025*1470 3000 |
Applications
Prototyping: Rapid, precise part development for R&D.
Medical Devices: Machining biocompatible implants and surgical tools.
Electronics: Micro-component turning for connectors and housings.
Automotive: Small-batch production of engine parts, fittings, and sensors.
Why Choose the TCK25Y?
Cost-Effective: Low maintenance and minimal scrap rates reduce operational costs.
Quick Delivery: Modular design allows fast assembly and global shipping.
Global Compliance: CE, ISO 9001 certified, meets EU/US safety standards.
