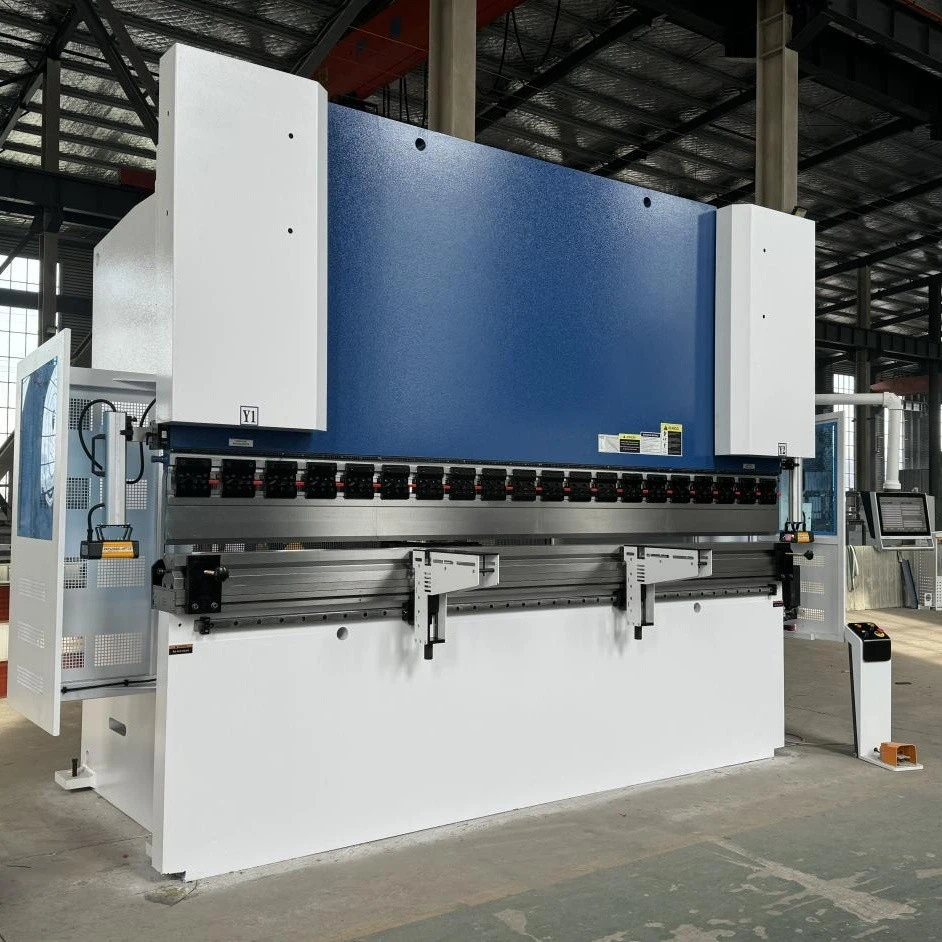

Cnc Bending Machine

cnc bending machine are industrial machines designed to form cold metal sheets into workpieces with various geometric cross-sections using standard or specialized dies. They are engineered for the precision bending of cold-rolled sheet metal and are widely used in industries including automotive, aircraft manufacturing, light industry, shipbuilding, container production, elevator manufacturing, and railway vehicle fabrication.

Send Inquiry

Product Introduction

MACHINE STRUCTURE & FRAME

CNC bending machine are industrial machines that utilize standard or custom-designed dies to bend cold metal sheets into workpieces with various geometric cross-sectional shapes. These machines are typically equipped with dedicated CNC systems specifically designed for press brake operations. The number of controllable axes has evolved from a single axis to up to 12 axes, enabling the CNC system to automatically perform multiple functions including: ram depth control, left and right ram tilt adjustment, back gauge forward/backward and left/right positioning, pressure tonnage adjustment, and approach speed regulation of the ram.

This high level of automation allows the press brake to efficiently execute actions such as downward pressing, inching, continuous operation, pressure maintenance, return stroke, and mid-cycle stopping. A single setup can complete multiple bends with identical or varying angles in one loading, significantly enhancing production efficiency and forming complexity.

Frame Construction: Solid steel plate (SS400), fully welded with FEM-optimized design

Stress Relief: Vibration aging treatment + precision machining

Deflection Compensation: CNC-controlled hydraulic crowning system (±2.0mm)

Surface Protection: Electrophoretic anti-corrosion coating (60μm)

SECURRITY CE STANDARD

1.FULL SIZE REAR DOOR WITH OPEN-DOOR POWER-OFF FUNCTION FOR SECURITY

2.BIG SIZE TWO SIDES PROTECTION AGAINST ARM IN ACCIDENT

3.EMERGENCY STOP BUTTON BOTH ON CONTROL PANEL & FOOT SWITCH CONTROL

4.CE STANDARD WIRE CONNECTION ELECTRICAL BOX

MAIN PARAMETERS

ITEMS		300T3200
Nominal forces		3000KN
Working table length		3200MM
Distance between uprights		2600MM
Throat depth		420MM
Ram Stroke		300MM
Open height		590MM
Number of control axes		6+1 (Y1,Y2,X,R,Z1,Z2 +V)
Beam Speed	Fast	100MM/S
	Working	10MM/S
	Return	90MM/S
Repeated positioning accuracy of slider		0.01MM
Back gauge X axes	stroke	800MM
	accuracy	0.01mm
	MAX Speed	200MM/S
Main motor		22KW
Dimension		380019503100MM
Weight		15.5TONS
