Hey there! I'm a supplier of New Vertical Lathes, and today I wanna chat about how these bad boys manage the tool magazine, if they're equipped with one. It's a pretty cool aspect of these machines, and understanding it can really help you get the most out of your lathe.
First off, let's talk about what a tool magazine is. In simple terms, it's like a storage unit for all the different tools your lathe might need. Think of it as a toolbox on steroids. Instead of having to manually swap out tools every time you need to make a different cut or perform a different operation, the tool magazine can hold multiple tools and automatically change them as needed. This not only saves you time but also increases the precision and efficiency of your machining operations.
Now, how does a New Vertical Lathe manage this tool magazine? Well, it all starts with the control system. The control system of the lathe is like the brain of the operation. It's responsible for keeping track of which tools are in the magazine, where they're located, and when they need to be used.
Most modern New Vertical Lathes come with a CNC (Computer Numerical Control) system. This system allows you to program the lathe to perform specific operations using a series of commands. When it comes to the tool magazine, the CNC system can be programmed to select the right tool for the job, move it into position, and then start the machining process.
Let's say you're working on a project that requires multiple cuts with different tools. You can program the CNC system to tell the tool magazine which tools to use in what order. For example, you might start with a roughing tool to remove the bulk of the material, then switch to a finishing tool to give the surface a smooth finish. The CNC system will communicate with the tool magazine, and the magazine will automatically select and load the appropriate tool into the spindle.
But how does the tool magazine know which tool to select? That's where tool identification comes in. Each tool in the magazine is usually assigned a unique identifier, such as a barcode or a chip. The control system reads this identifier to determine which tool it is and where it's located in the magazine. This ensures that the right tool is always selected and loaded into the spindle.
Another important aspect of tool magazine management is tool change time. The faster the tool can be changed, the more efficient the machining process will be. New Vertical Lathes are designed to minimize tool change time by using advanced mechanisms and technologies. For example, some lathes use a carousel-style tool magazine, where the tools are arranged in a circular pattern. This allows the magazine to rotate quickly and bring the desired tool into position in a matter of seconds.
In addition to quick tool changes, the tool magazine also needs to be able to handle different types and sizes of tools. New Vertical Lathes are typically designed to accommodate a wide range of tool holders and inserts. This means that you can use a variety of tools for different applications, from small precision tools to large roughing tools.
Now, let's talk about some of the benefits of having a tool magazine on your New Vertical Lathe. One of the biggest advantages is increased productivity. With a tool magazine, you can perform multiple operations in a single setup, without having to stop and manually change tools. This saves you time and allows you to complete your projects faster.
Another benefit is improved accuracy. Since the tool magazine automatically selects and loads the right tool for the job, there's less chance of human error. This results in more precise cuts and a higher quality finished product.
Finally, having a tool magazine can also reduce labor costs. With automated tool changes, you don't need as many operators to run the lathe. This can save you money in the long run, especially if you're running a high-volume production facility.
If you're in the market for a New Vertical Lathe, or if you're looking to upgrade your existing machine, I highly recommend considering a model with a tool magazine. It's a feature that can really take your machining operations to the next level.

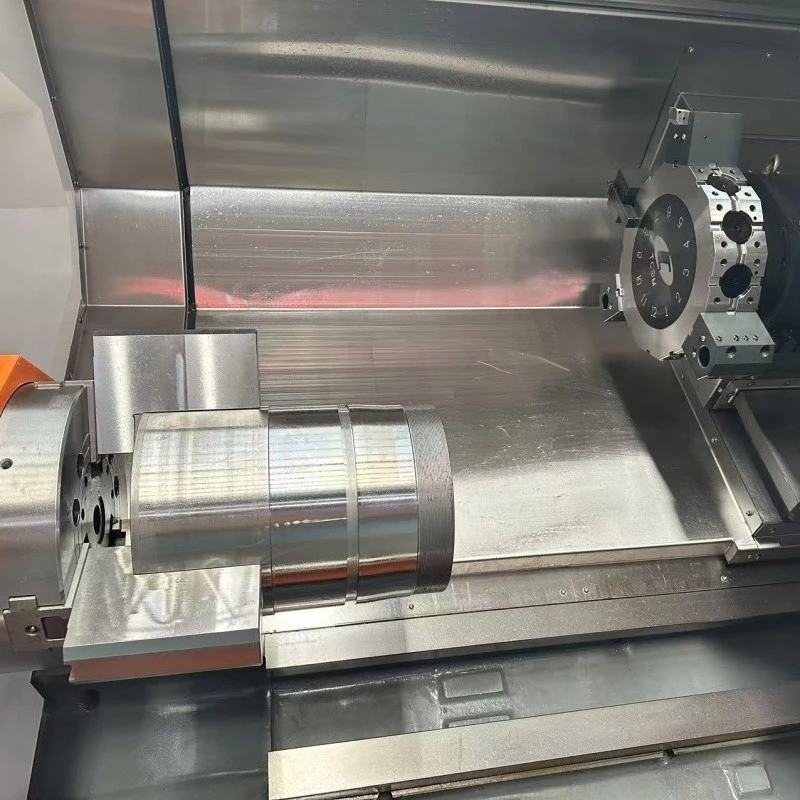

And speaking of New Vertical Lathes, we offer a wide range of options to suit your needs. Check out our New CNC Lathe, Ck6140 CNC Lathe, and Slant Bed Cnc Lathe Machine for more information.
If you have any questions or if you're interested in learning more about how our New Vertical Lathes manage the tool magazine, don't hesitate to get in touch. We're here to help you find the right machine for your business and to provide you with the support and expertise you need to get the most out of it.
So, what are you waiting for? Contact us today and let's start talking about how we can help you take your machining operations to the next level.
