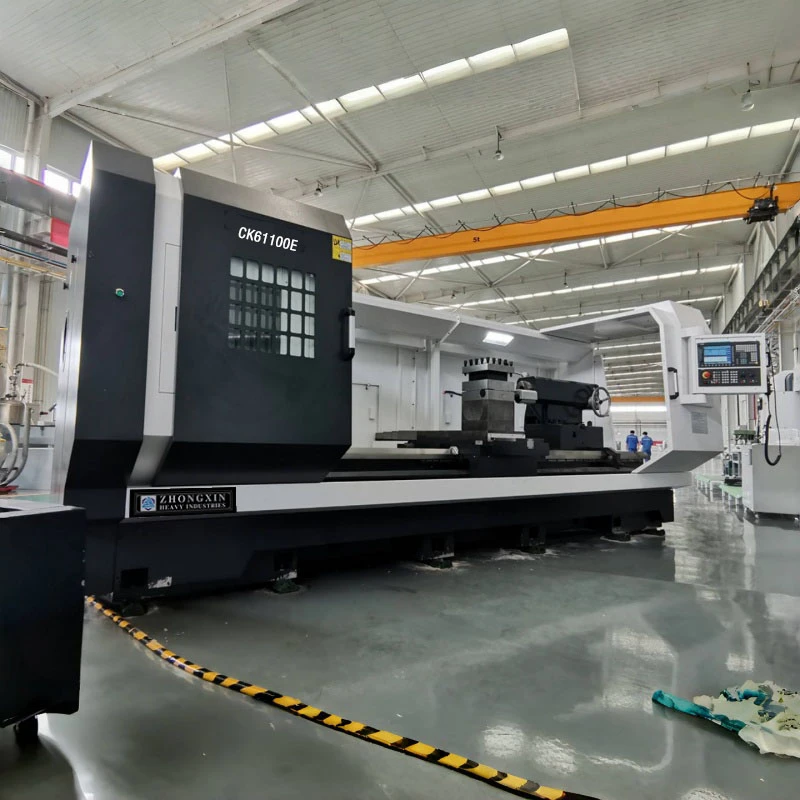

Cnc Lathe Machine Heavy Duty
USE
Gear Box One-Piece-Casting Machine Bed Box Way Cnc Lathe
This series of CNC lathes is heavy-duty type, suitable for semi precision machining and precision machining ofheavy duty workpieces, and suitable for turning various inner and outer cylindrical surfaces, conical surfaces.circular arc surfaces, and other rotating surfaces, various threads etc.
CNC lathe Characteristics
High stability integral machine bed
The spindle has three steps speed, with stepless frequency within each step.
High spindle rotation accuracy and strong rigidity
High strength base
Widened the cross slide
Automatic centralized lubrication
Standard Configuration

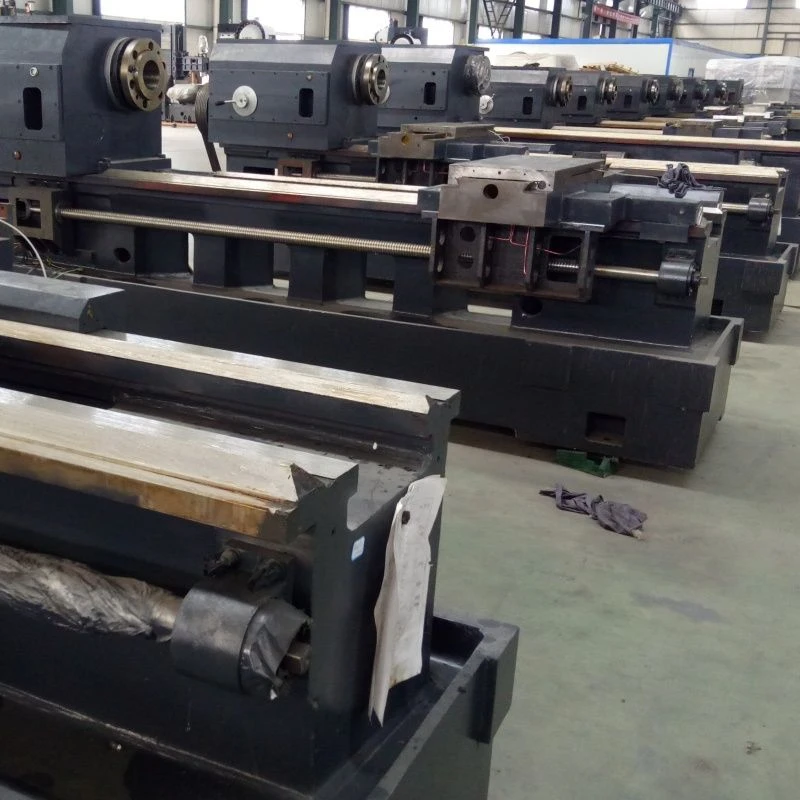

One-piece-casting machine bed
The machine tool is not easily deformed and maintains highprecision for a long time, with good rigidity.
Spindle gear box
It's quite suitable forheavy duty cutting.
Tailstock
It could be installed not only with rear center, but also with driland reamers for hole machining.
Specifications
| Technical parameter | Unit | CK61100E | CK61125E |
| Max.swing dia.over bed | mm | 1000 | 1250 |
| Max.swing dia.over slide | mm | 650 | 850 |
| Maximum turning diameter (disc) | mm | 830 | 1090 |
| Center distance | mm | 1500/2000/3000 | 1500/2000/3000 |
| Maximum turning length | mm | 1400/1900/2900 | 1350/1850/2850 |
| Spindle nose | GB59001 | A2-15 | A2-15 |
| spindle bore | φ/mm | 130 | 130 |
| Spindle taper | r/min | Metric 140/1:20 | Metric 140/1:20 |
| Spindle speed | 10-60,40-240,100-600 | 10-50,40-120,100-300 | |
| Spindle shift mode | 3-step speed with manual gear shifing,stepless in step | 3-step speed with manual gear shifing,stepless in step | |
| Spindle motor power | KW | 15 | 22 |
| Chuck type | Inch | Manual chuck | Manual chuck |
| Chuck size | m/min | 500 | 630 |
| X/Z axis rapid traverse | m/min | 45752 | 45752 |
| X/Z axis servo motor torque | N.m | x:10 z:15/22/30 | x:15 z:18/22/30 |
| X/Z axis travel | mm | x:530 z:1500/2000/3000 | x:650 z:1350/1850/2850 |
| Guide way type | box way | boxway | |
| Tool quantity | 4 | 4 | |
| Tool shank size | mmxmm | 40X40 | 40X40 |
| Tail stock quill dia | φ/mm | 140 | 160 |
| Tail stock quill ravel | mm | 250 | 250 |
| Tail stock quill taper | MT6# | MT6# | |
| Total rated power | KW | 20/22/24 | 28/30/31 |
| Total rated current | A | 40 | 65 |
| Net weight | kg | 5400/6000/6800 | 5000/9600/10600 |
| Machine dimension(LxW×H) | mm | 4100/4600/5600×2160x2200 | 4100/4600/5600×2355×2455 |
