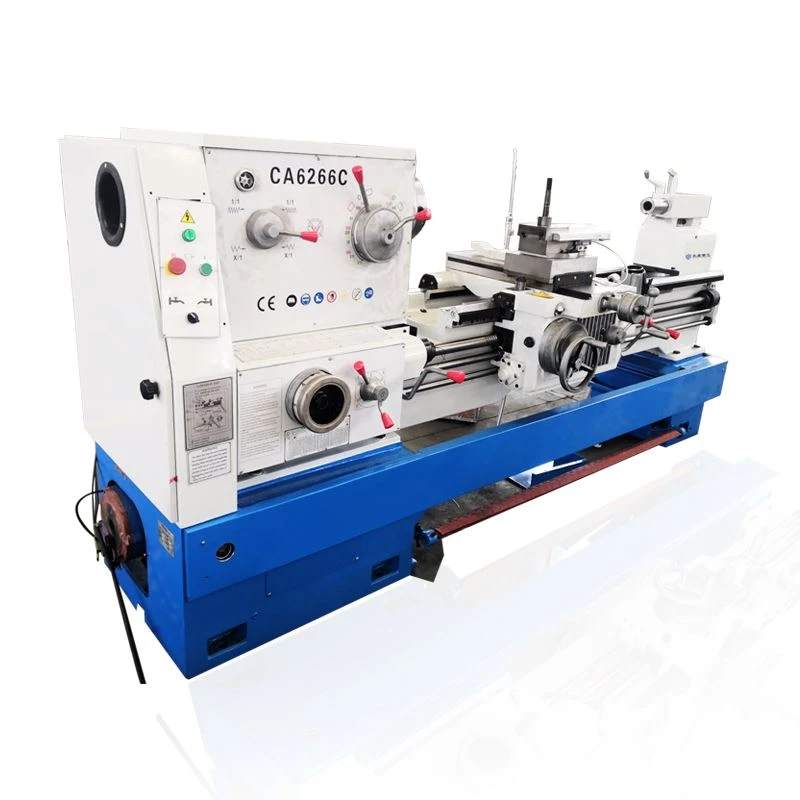

High Precision Manual Lathe

CA6166 Series high precision manual lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning of various metric, British, modular and diameter thread, and can carry out drilling and pulling tank and other work, is a very versatile horizontal lathe, widely used for a variety of shaft and disc parts batch processing.

This series of lathes is wider than the general lathe, the rail width of 400mm has high stiffness, the rail surface by moderate frequency quenching, long wear.

High precision manual lathe machine tool operation spirit is concentrated, the slip is equipped with a fast moving mechanism. Using a single handle visualization operation, good pleasant property.

The machine tool structure stiffness and transmission stiffness are higher than the general lathe, the power utilization rate is high, suitable for strong cutting.

Before the machine tool leaves the factory, inspect the machine tool in strict accordance with the inspection procedures, and do strong cutting test to ensure that the machine tool has good accuracy, stability and processing reliability.

1.Machine tool bedside box and bed body.tailstock. Plate and other combined surface between the manual scraping research, the whole machine after strict detection, effectively ensure the accuracy and stability of the machine tool.

2.The machine tool adopts high strength cast iron, adds copper and chromium special materials, the width of the bed body rail is 400mm, and the quenching depth of the bed body rail reaches 4mm, which effectively improves the wear resistance and stability of the machine tool.

3.The lubrication of the machine tool is made by cycloid pump. According to the hot weather in the south, it ensures the cleanliness and heat dissipation characteristics of the head of the machine tool, and effectively extends the service life of bearings and gears.

4.The main shaft of the machine tool adopts Wafangdian bearing, and the spindle through hole is 52,80 and 104mm. The machine tool gear adopts precision grinding, which effectively improves the hardness of the gear and reduces the noise of the machine tool.

5.The machine tool adopts domestic brand wire bar, and the silk mother adopts high quality bronze alloy to ensure wear resistance and precision maintenance.

6.The machine tool adopts four working station high strength knife holder, knife handle size: 25x25mm.
