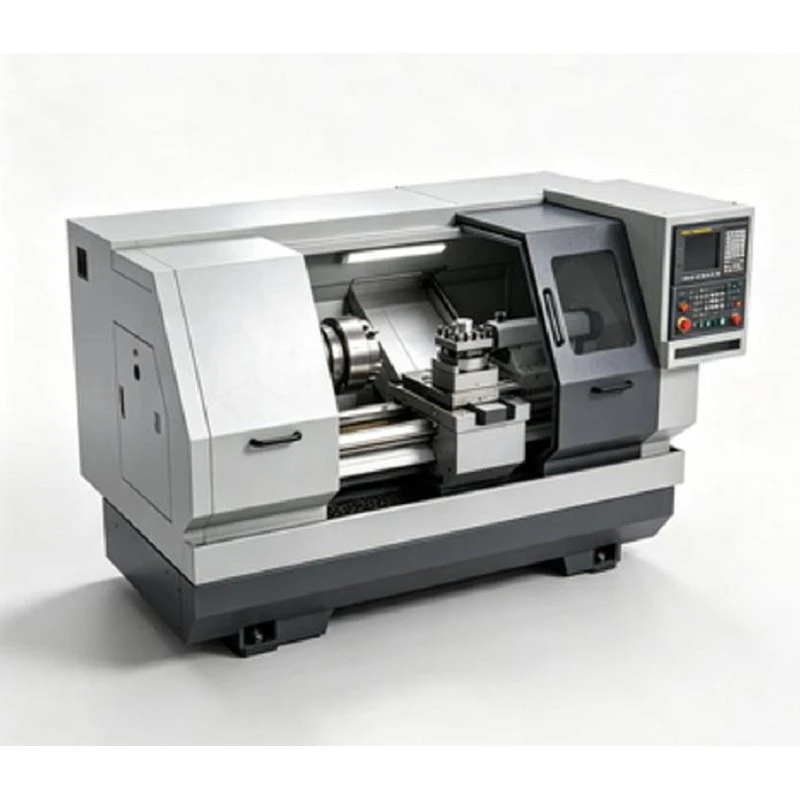

Precision Slant Bed CNC Lathe

The Precision Slant Bed CNC Lathe is engineered for high-precision manufacturers requiring long-term continuous accuracy, process stability, and high chip-removal efficiency. Built on a rigid 30°/45° inclined cast-iron bed with precision linear guideways and a high-rigidity spindle, this turning center absorbs heavy cutting forces and reduces thermal vibration.

Designed for automotive parts, hydraulic components, precision shafts, and general mechanical engineering, the slant bed structure naturally channels chips directly to the chip conveyor, making it an ideal core platform for automated batch production.

Meehanite Monoblock Bed: Double-annealed cast iron provides high damping capacity and thermal stability.
Precision Motion Control: Linear guideways paired with P4-class bearings deliver dynamic positioning accuracy up to ±0.003 mm.
Superior Chip & Thermal Management: Inclined structure directs chips and coolant away from the workpiece to prevent thermal expansion.
High-Rigidity Spindle Assembly: Supports heavy roughing cuts and fine surface finishing down to Ra 0.4 µm.
Flexible Modular Configurations: Easily customized with live tooling, C/Y axes, sub-spindles, and automatic bar feeders.

Automation-Ready Platform: Integrated interfaces for robotic loading, hydraulic chucking, and turn-key cell deployment.

Automotive Components
Drive shafts, gear blanks, brake calipers, steering knuckles, fuel injector nozzles, and high-precision bushings.

Hydraulic and Pneumatic Systems
Spool valve bodies, hydraulic cylinder rods, high-pressure hose fittings, manifold block connectors, and pump shafts.

General Machinery & Industrial Equipment
Heavy-duty motor shafts, bearing housings, stainless steel flanges, threaded couplings, and power transmission parts.

Monoblock Slant Bed Structure
Single-piece dense-grain Meehanite cast iron base, stress-relieved via double annealing processes. Superior vibration damping capacity (10 times higher than standard structural steel), extending insert life by up to 30%.

Precision Linear Motion Guideways
Heavy-duty linear roller guideways on X and Z axes (THK / PMI / HIWIN P-class). Zero backlash under heavy loads with rapid traverse speeds up to 24/30 m/min.

High-Precision Spindle Assembly
Cartridge-type spindle supported by double-row cylindrical roller bearings and angular contact thrust ball bearings. Dynamic balancing rated at G0.4 standards to ensure mirror-like surface finishes (Ra ≤ 0.4 μm).

Carbon & Alloy Steels: 1045, 4140, 4340, 8620 (Roughing & Finishing)
Stainless Steels: 304, 316L, 17-4PH, 420, 430
Cast Irons: Ductile iron, gray cast iron (HT250/300)
Non-Ferrous Metals: Aluminum alloys (6061-T6, 7075), Brass, Bronze, Copper
Exotic & Hard Alloys: Inconel, Titanium Grade 2/5, Hardened Steel up to 58 HRC
Engineering Plastics: POM (Delrin), Nylon, PEEK, PTFE

For High-Volume Automated Production
Hydraulic hollow chuck + high-pressure coolant pump (10-20 bar)
Automatic bar feeder + parts catcher system
Automated chip conveyor with continuous filtration

For Multi-Tasking & Complex Components
C-axis spindle control with disk brake
12-station live tooling turret (VDI/BMT driven tools)
Optional Y-axis off-center milling capability

For Ultra-Tight Tolerances
High-resolution optical linear scales on X/Z axes
Renishaw automatic tool presetter
In-process workpiece measuring probe


Laser Interferometer Calibration: 100% of machine X/Z axes are calibrated using Renishaw laser interferometers to verify linear positioning and pitch error compensation.
Ballbar Circularity Inspection: Renishaw Ballbar testing is performed to ensure contouring accuracy and dynamic geometry.
Spindle Dynamic Balance & Runout: Spindle runout is verified under ≤ 0.002 mm at the nose taper; dynamic balancing prevents high-speed vibration.
48-Hour Continuous Dry-Run Burn-In: Every machine undergoes a continuous full-speed endurance run to verify electrical, hydraulic, and thermal stability.
Inspection Protocol Included: A complete inspection certificate, laser test reports, and test-cut sample parts ship with each machine.

We provide full-lifecycle technical support to ensure seamless international installation and operation:
International Compliance: Machines feature CE certification, UL-compliant electrical components, and custom voltage transformers (200V-480V, 50/60Hz).
Documentation & Manuals: Complete English operation, maintenance, electrical schematics, and Fanuc/Siemens programming handbooks.
Technical & Spare Parts Support: 24/7 remote technical assistance; standard spare parts dispatched via DHL/FedEx express within 48 hours.
Export Packaging: Rust-inhibitor coating, vacuum foil barrier bag, and heavy-duty ISPM-15 compliant sea freight wooden case packaging.
