Small CNC Lathe with Live Tooling
TCK50A small cnc lathe with live tooling
Cnc Lathe Use
Small cnc lathe with live tooling the machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
Main Features
- Small cnc lathe with live tooling higher accuracy Taiwan linear ways
- Higher speed spindle unit
- Higher rigidity cast iron
- Integrated automatic lubrication
- One-piece Casting slant bed CNC lathe
- Small cnc lathe with live tooling the lathe adopts 45°whole inclined bed structure with strong rigidity,high precision and good stability
- Highly rigid turret with accurate indexing for machining precision
- Highly rigid, high precision spindle design allows for easy and powerful heavy duty cutting
- High quality drive components achieve the highest quality dynamic characteristics
Machine Details

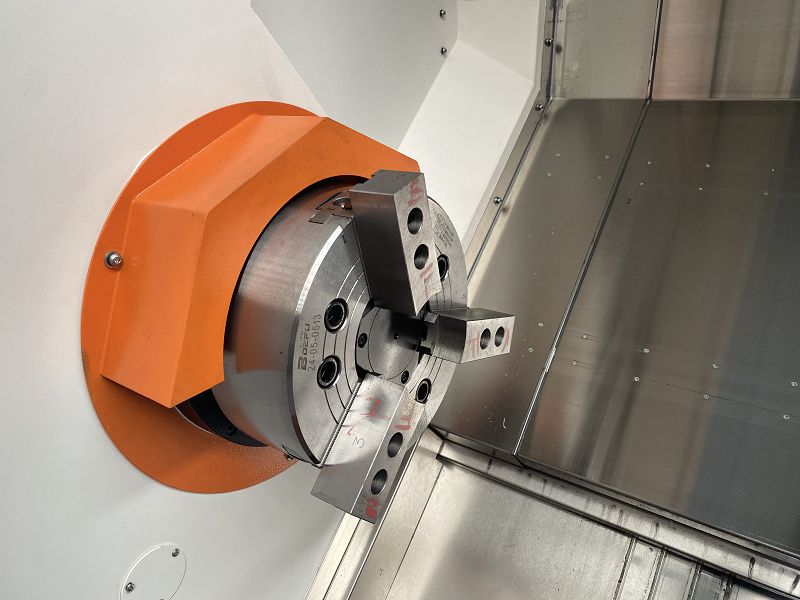

01 Hydraulic chuck
Wedge-shaped through-hole chuck, fast clamping and loosening work under hydraulic pressure, fast clamping speed, high precision
02 Power turret
Servo motor-driven turret bidirectional fast tool selection, using high-precision triple end gear locking, through the power tool holder to realize turning, milling and drilling machining as a whole, through the power tool holder can be axial radial angle machining
03High-speed spindle unit
Adopting high-precision spindle bearing set and spindle with precision assembly and dynamic balance test to ensure high spindle precision, low noise and strong rigidity.
04 High precision Taiwan linear guide
Screws and nuts are processed in constant temperature workshop, grinding, assembly and quality control, can ensure its high precision stability, the use of linear rail friction coefficient is small, fast moving speed, high precision.

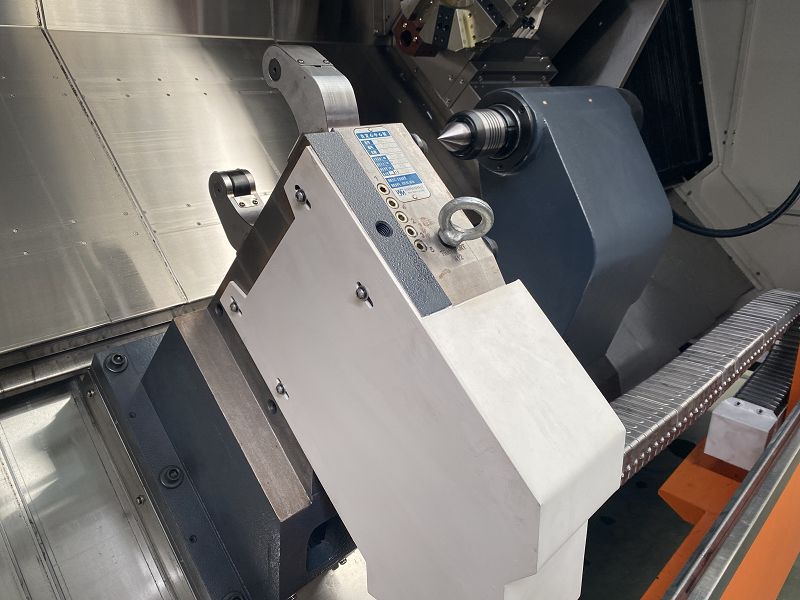

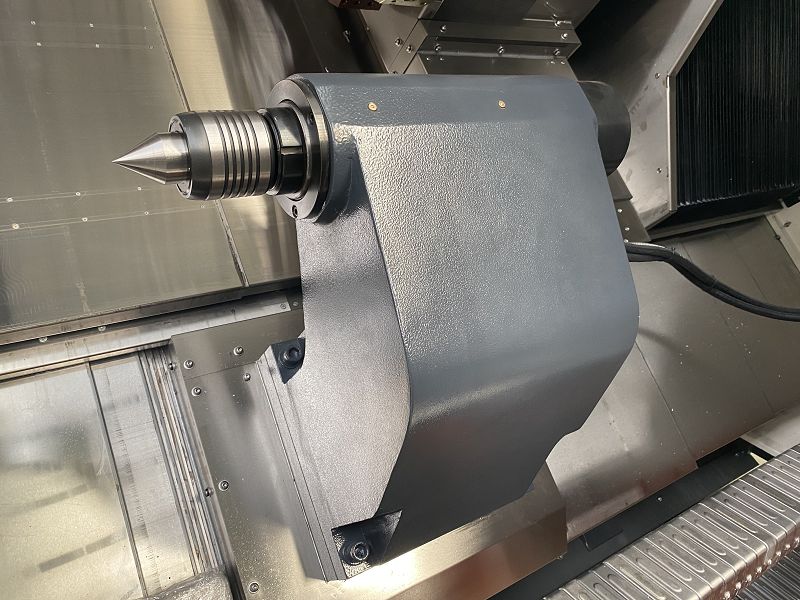

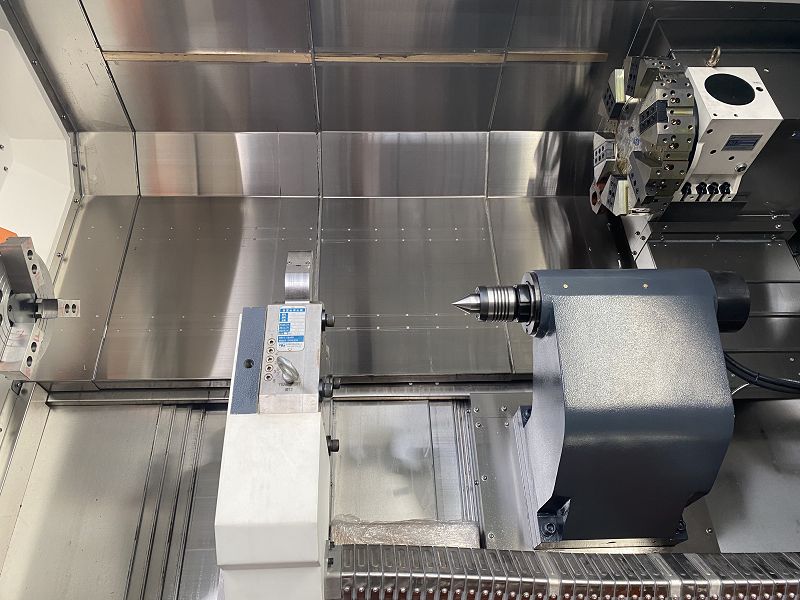

05 Hydraulic tail stock:
The hydraulic tail stock is processed by manual (or hydraulic) adjustment, manual (or hydraulic) locking, and hydraulic piston topping the work piece.
06 Machine lubrication:
RBCLB-3ZK type volumetric lubrication pump, automatic lubrication, mainly bed guide and drag plate on the dovetail surface, ball screws and nuts between the lubrication surface uninterrupted oil supply.
Specifications
|
MODEL |
TCK50A |
|
Max. swing over bed (mm) |
560 |
|
Max. swing over cross slide (mm) |
300 |
|
Max. processing length (mm) |
500/800/1250 |
|
Spindle unit (mm) |
200/230(800/1250) |
|
Spindle nose |
A2-6/8(800/1250) |
|
Spindle motor (kw) |
11/15(800/1250) |
|
Max. spindle speed (rpm) |
3000 |
|
Spindle bore (mm) |
66/86(800/1250) |
|
Bar capacity (mm) |
55/75(800/1250) |
|
X/Z axis screw specifications |
3210/4010 |
|
X-axis stroke limit (mm) |
240 |
|
Z-axis stroke limit (mm) |
540/860/1300 |
|
X-axis motor torque (N.m) |
10/15(800/1250) |
|
Z-axis motor torque (N.m) |
10/15(800/1250) |
|
X/Z axis repeatability (mm) |
+/- 0.003 |
|
Tool turret |
12 station power turret with Y axis |
|
Y axis travel (mm) |
-50-+50mm |
|
Turret center high dimension (mm) |
100 |
|
Hydraulic Quill dia. (mm) |
70 |
|
Hydraulic Quill traverse (mm) |
80 |
|
Hydraulic Quill taper |
MT-5 |
|
Hydraulic tailstock travel (mm) |
450 |
|
Machine dimension (mm) |
2700/3300/3750*2000*2000 |
|
Weight (kg) |
3600/4500/5200 |
