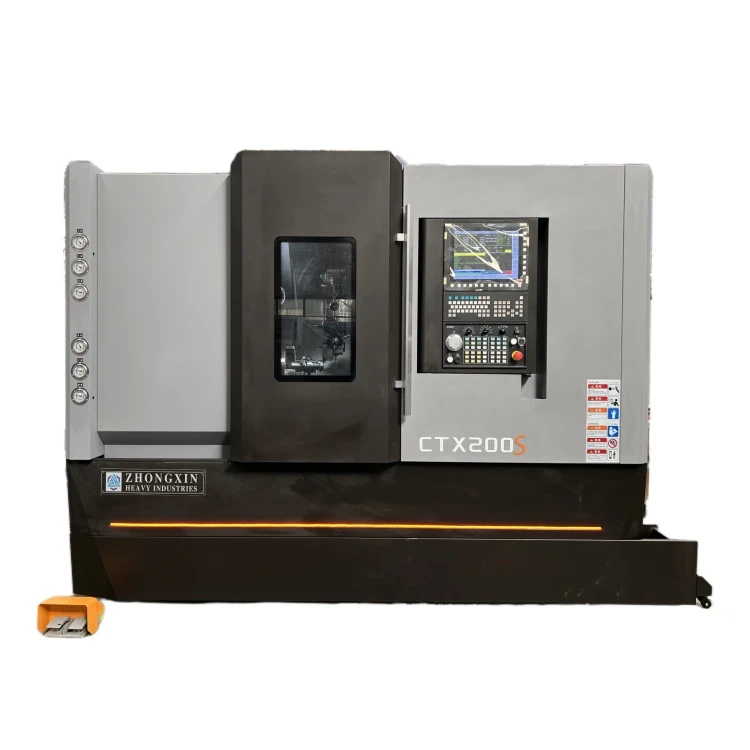

Lathe Milling Machine Combo 3 in 1



The workpiece clamped one time could finish all processing steps.

This machine tool has the high speed, the high precision, and the strong composite processing ability. It can process various large and long workpieces.

lH can be widely used in various industries such as aviation,energy,shipbuilding, and medical treatment.The modular concept and the highly versatile options provide a wide range of machining possibilities, and achieve machining from universal turningto complex parts complete machining.





● Taiwan roller type linear guide

● Higher speed spindle unit

● High power Y-axis motor

● Embedded lubrication system

● High rigidity integral inclined bed





Turning and milling compound is a kind of machine tool processing method integrating turning and milling, which can simultaneously complete multiple processes such as turning, milling and drilling of parts, and is characterized by high efficiency, high precision and high automation, etc. The definition, process and advantages of turning and milling compound are introduced below. The following will be introduced from the definition, process, advantages of three aspects.



First, the definition

Turning and milling composite by the lathe and milling machine two processing methods combined into a composite machine tool. The machine tool can realize multiple processes such as turning, milling, drilling, tapping, etc. of parts under the same clamping, the same precision and the same program, and can be used as a production tool for a variety of parts, such as: gears, drive shafts, racks, threads, etc.



Second, the process

The process of processing is relatively complex, demanding, and requires a certain degree of professional skills. The process is generally composed of the following links:

1. Machine preparation: mainly including machine settings, tool cutting settings, clamping device settings, etc..

2. Process programming: according to the requirements of the machining process of the parts, the preparation, optimization and refinement of the program.

3. Machine tool processing: start the machine tool, according to the set program for parts processing.

4. Quality Inspection: Conduct quality inspection for the machined parts, such as: precision, surface finish, size, etc.





Turning and milling composite machine tool to overcome some of the shortcomings of the unidirectional processing machine tools, with the following advantages:

1. High efficiency: single machine to complete a variety of processes, saving process conversion time and cost.

2. High precision: high precision, good surface finish, improve the practicality and aesthetics of parts.

3. High automation: programmed and automated machining process, making full use of manpower to gain benefits. High degree of automation reduces the possibility of human error and improves production efficiency and product quality.



In summary, mill-turn machine tool is a kind of high efficiency, high precision, high automation multi-functional processing machine tool. With the improvement of industrialization, the realization of downsizing and the change of global production and manufacturing mode, its demand is increasing day by day and will become one of the important processing tools.



Specifications	CTX200S
Max swing dia.over bed(mm)	700
Max swing dia.over slide(mm)	350
Max.work piece length(mm)	450
Max.bar capacity(mm)	50
Max processing diameter (plate)(mm)	280
Spindle nose	A2-6
spindle bore(mm)	65
Spindle speed(r/min)	50-3000
Spindle motor power(KW)	11
Chuck size(Inch)	8
Xaxis rapid traverse(m/min)	18
Y axis rapid traverse(m/min)	6
Z axis rapid traverse(m/min)	18
Xaxis servo motor torque(N.m)	15
Y axis servo motor torque(N.m)	6
Z axis servo motor torque(N.m)	15
Xaxis travel(mm)	200
Y axis travel(mm)	±45
Z axis travel(mm)	550
Tool shank size(mm)	25X25/040
sub-spindle nose	A2-6
sub-spindle bore(mm)	65
sub-spindle speed(r/min)	50-3500
Sub-spindle power	15
Total rated power(KW)	32
Net weight(KG)	4250
Machine dimension(LxWxH)(mm)	3370x2000x2200
