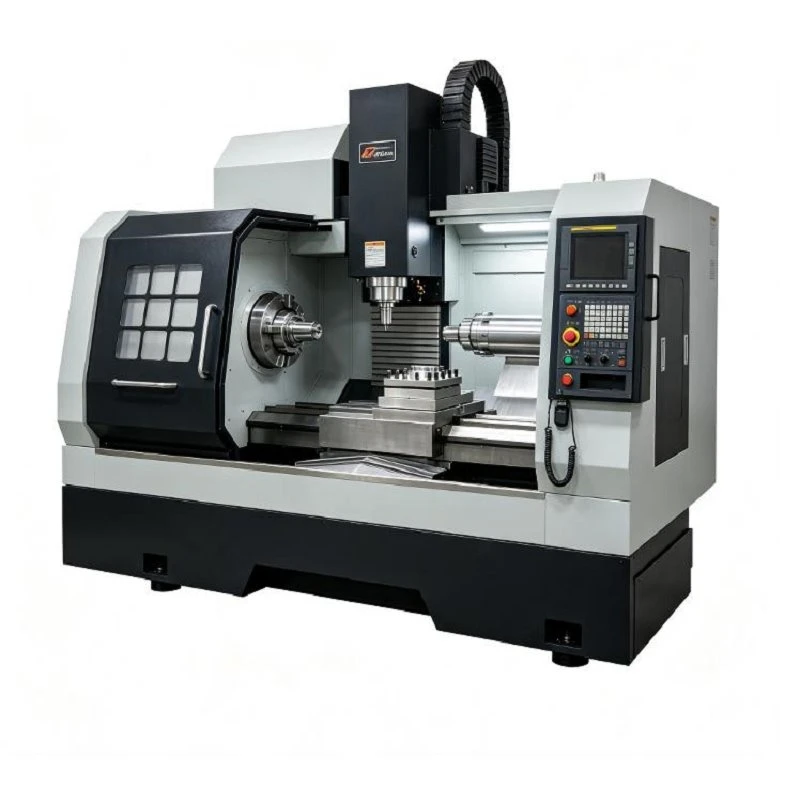

Precision Mill Turn Machining Center

The Precision Mill Turn Machining Center is engineered for complex rotational components requiring multi-process machining. By integrating OD turning, facing, boring, threading, off-center milling, drilling, and tapping on a single platform, manufacturers eliminate cumulative workholding errors and cut component lead times. Available configurations range from standard C-axis live tooling to Y-axis offset capabilities and sub-spindles for complete front-and-back finishing.

Heavy-Duty Slant-Bed Structure: One-piece 30° premium cast iron bed ensures maximum vibration damping and thermal stability during heavy milling cuts.
C-Axis Spindle Control: High-resolution spindle encoder allows fully contoured milling and precise hole pattern positioning.
Y-Axis Capability: Provides true orthogonal movement perpendicular to the spindle center, essential for flat side-milling and offset drilling.
Live Tool Turret (BMT/VDI): High-torque driven stations for heavy-duty drilling, end-milling, and rigid tapping.
Sub-Spindle Transfer: Automated part handoff enables total front-and-back machining in a single cycle.

Automotive: Transmission shafts, control valve sleeves, custom couplings, and drive bushings.
Hydraulics & Pneumatics: Manifold fittings, hydraulic spool valves, piston connectors, and sleeves.
Industrial Equipment: Pump shafts, drive rollers, heavy-duty couplings, and motor connectors.
Aerospace & Defense: Precision actuators, specialized fittings, and high-tolerance rotational hardware.

Medical Devices: Stainless steel and titanium instrument bodies, precision connectors, and micro-shafts.

Shafts and Axles: Components with keyways, flats, oil grooves, or cross holes.
Hydraulic and Pneumatic Components: Valve bodies, fittings, sleeves, and manifolds with cross-drilled ports.
Flanged Components and Couplings: Parts requiring precise bolt-hole patterns, key slots, or perimeter milling.
Multi-Sided Workpieces: Parts currently requiring both CNC turning and VMC milling operations.

Hydraulic Fittings and Valves: Executes OD/ID turning, port threading, flat milling, and cross-drilled oil channels on a single axis reference.
Precision Shafts: Combines journal turning, thread chasing, keyway slotting, and transverse hole drilling.
Flanges and Bushings: Performs face turning, internal boring, pitch-circle bolt-hole drilling, and tapping with C-axis positioning.

Couplings and Connectors: Delivers complete machining including internal keyways, side slots, and rear-face counterboring via sub-spindle handoff.

CNC Control Options: Custom integration with FANUC, Siemens, or Mitsubishi systems based on shop-floor standardization.
Workholding Solutions: Hydraulic three-jaw chucks, collet chucks, hard/soft jaws, and custom indexing fixtures.
Tooling Systems: Heavy-duty BMT or versatile VDI turrets for rapid tool changes and rigid milling operations.
Chip & Coolant Systems: Hinged belt chip conveyors, multi-stage filtration, and high-pressure through-tool coolant systems (70+ bar).
Automated Production Options: Automatic bar feeders, part catchers, gantry loaders, and robotic cell integration.
