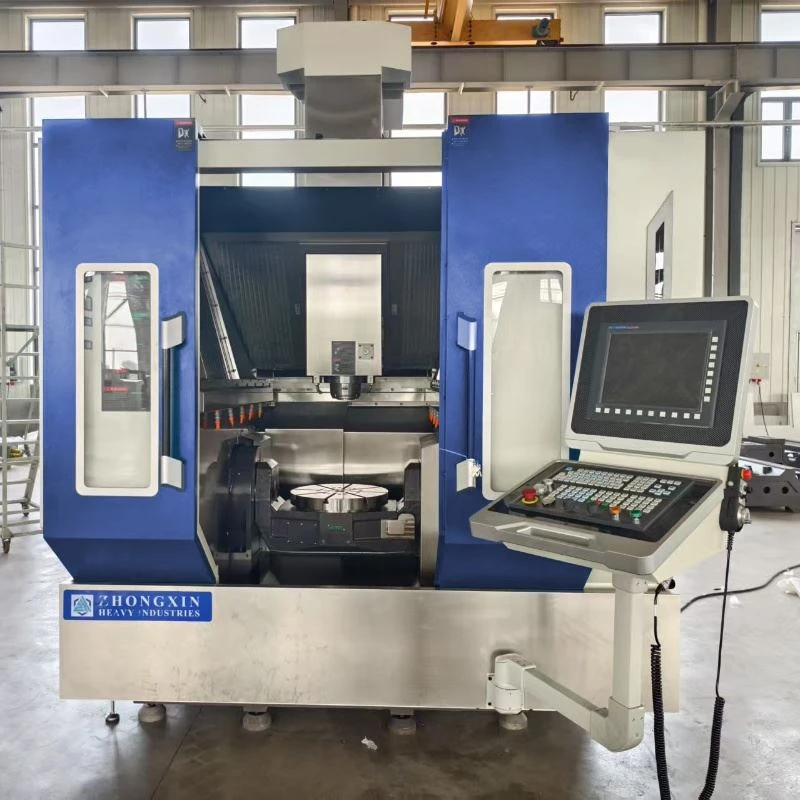

The 5-axis CNC machining center adopts a gantry structure and is equipped with a Siemens ONE series CNC system. The equipment consists of a base, column, crossbeam, slide, spindle box, direct-drive A/C cradle rotary table, hydraulic system, lubrication system, cooling and filtration system, chip removal device, automatic tool change system, rotary control panel, and electrical control system.

Send Inquiry

Product Introduction

OVERVIEW

The U500 five-axis machining center features a gantry structure with a Siemens ONE series CNC system. Key components include:

Base

Column

Crossbeam

Slide

Spindle box

Direct-drive A/C-axis tilting rotary table

Hydraulic system

Lubrication system

Cooling and filtration system

Chip conveyor

Automatic tool changer (ATC)

Rotary control panel

Electrical control system

Axis Configuration:

X-axis: Horizontal movement of slide along crossbeam

Y-axis: Vertical movement of crossbeam along column

Z-axis: Vertical movement of spindle housing along slide

A-axis: Tilting oscillation of rotary table (X-direction)

C-axis: Rotary motion about table centerline

Spindle and Tool Magazine

5-axis CNC machining center is equipped with an HSK63A spindle unit with a maximum speed of 20,000 rpm.

The corresponding 32T horizontal chain-type tool magazine allows for pre-selection of tools and accurate, rapid automatic tool changes.

Linear Guideways

Roller-type linear guides on all axes ensure high-speed stability

Precision ball screws directly coupled to high-torque servo motors enable rapid response and precise positioning

A/C-Axis Rotary Table

Direct-drive torque motors (zero backlash/wear)

High-precision circular encoder feedback

High-torque braking system enhances:

Fixed-angle machining rigidity

Simultaneous 5-axis performance

Main Structural Components

The main castings of the 5 axis linkage cnc machining center are made of high-quality gray cast iron, which is highly stable, has high tensile strength, and has certain shock absorption properties, providing a solid foundation for the machine's high-speed, high-precision operation. All structural components are carefully designed by engineers, reasonably laid out, compact in structure, and full of ribs. They are also optimized a second time based on finite element analysis results to ensure the stability of each component unit.

Operating System

The Siemens ONE series is a new generation of high-performance, high-reliability CNC systems that integrate cutting-edge technologies in the field of numerical control. Through continuous innovation and improvement, these systems offer advanced control features such as multi-axis interpolation, bus control, high-speed and high-precision operation, absolute encoders, and tool tip following. The products are powerful, easy to operate, and suitable for a wide range of applications.

Inspection and Testing

All machines are tested with a Renishaw laser interferometer for pitch compensation and a ballbar test for circularity to ensure optimal positioning accuracy and servo characteristics. Before shipment, the machines undergo continuous operation for at least 72 hours and multiple tests of geometric accuracy and cutting performance to ensure long-term stability of all machine accuracies.

Specifications

Parameter	Unit	U500
XYZ Linear Axes
X-Axis Travel	mm	520
Y-Axis Travel	mm	600 (400 front + 200 rear,Tool Change Zone: 400)
Z-Axis Travel	mm	470
Spindle Nose to Table (Table Horizontal)	mm	125–595
X/Y/Z Rapid Traverse Speed	m/min	24
Cutting Feed Rate	m/min	1–10
X/Y/Z Servo Motor Torque	N·m	27/27/27
Positioning Accuracy	mm	±0.005/300
Repeat Positioning Accuracy	mm	±0.005
A/C-Axis Tilting Rotary Table
Table Diameter	mm	Ø500
A-Axis Tilting Range	°	±120
C-Axis Rotation Range	°	Continuous 360
Max. A-Axis Speed	rpm	90
Max. C-Axis Speed	rpm	60
A/C-Axis Rated Torque	N·m	860/430
A/C-Axis Max. Torque	N·m	1,600/810
Table Load (Horizontal)	kg	350
Table Load (Tilted)	kg	180
T-Slots (Qty-Size-Spacing)	-	8-14mm-360° Equispaced
A/C-Axis Positioning Accuracy	sec	±5
A/C-Axis Repeat Positioning Accuracy	sec	4
Spindle
Spindle Type	-	Motorized Spindle
Taper	-	HSK63A
Max. Spindle Speed	rpm	20000
Power Rating	kW	20/30
Rated Torque	N·m	72 (S1)/85 (S6)
Tool Magazine (Flat Chain-Type)
Capacity	T	32
Max. Tool Diameter (Full/Adjacent)	mm	Ø78/Ø120
Max. Tool Length	mm	300
Max. Tool Weight	kg	8
General Specifications
Machine Weight	t	14
Overall Dimensions (L×W×H)	mm	2280×4200×2800

Machine Tool Configuration

No.	Component	Specification/Model	Manufacturer
1	CNC System	ONE (5-Axis Simultaneous + RTCP)	Siemens
2	Machine Cover	N/A	N/A
3	Pneumatic System	N/A	AirTAC
4	Coolant Pump	CH2V-30TP / 750W	Deyang
5	Control Cabinet AC (x2)	QG-JK-030	Quanguan
6	Main Electrical Components	N/A	Schneider
7	Work Light	M9-600 / 16W	ONN
8	Alarm Light	5i-I2-A3-BBF-T	ONN
9	Tool Magazine	HSK63A-32T Flat Chain-Type	AIMACH
10	Documentation Kit	Mechanical/Electrical/System Manuals, Accuracy Test Report	N/A
11	Ball Screw Bearings (XYZ)	ID 30mm / OD 62mm	NACHI
12	Ball Screws (XYZ)	Model 4012	HIWIN
13	Linear Guides (XYZ)	RGH45 Roller Type (X/Y/Z)	HIWIN
14	Motorized Spindle Unit	HSK63A-150-20,000 rpm	IBEIKO
15	Axis Bellows Covers (XYZ)	N/A	Heima Zhao
16	Automatic Lubrication	TZ-2202-210XA	HEGU
17	Lock Nuts (XYZ)	YSF M30×1.5P	YNS
18	Shaft Couplings (XYZ)	N/A	RUIDI
19	Anchor Bolts & Bases	N/A	N/A
20	Oil Cooler	WHO-10C	Wenheng
21	Chip Conveyor	N/A	N/A
22	A/C-Axis Tilting Table	Direct-Drive, Ø650 Table	HIWIN
23	Linear Encoders (XYZ)	-	Fagor
24	Spindle Chiller	QG-025LS-PA-3385	Quanguan
25	Rotary Table Chiller	QG-035LS-PA-3385	Quanguan
